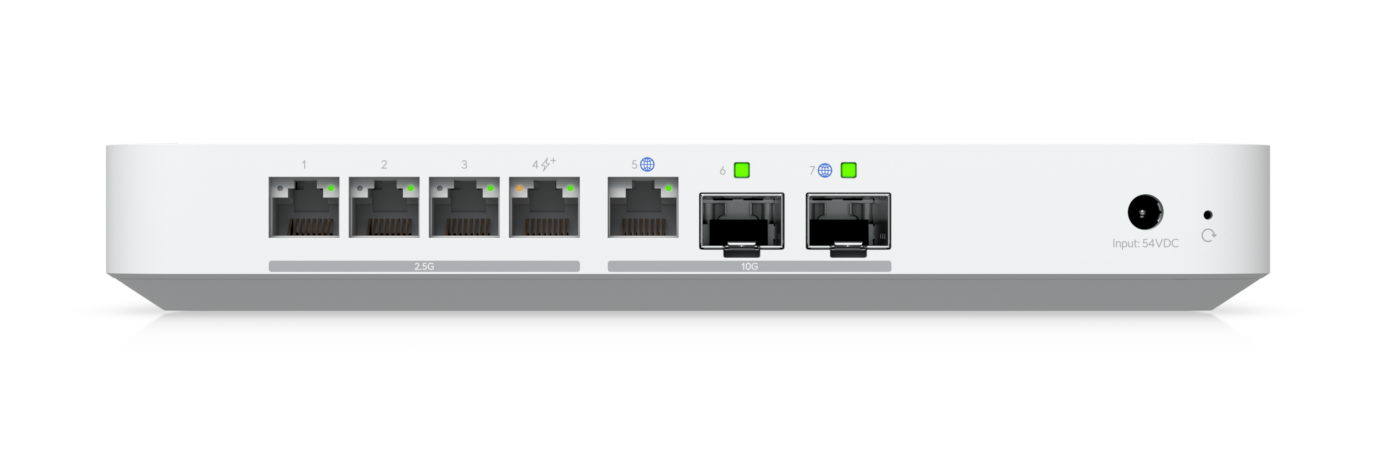

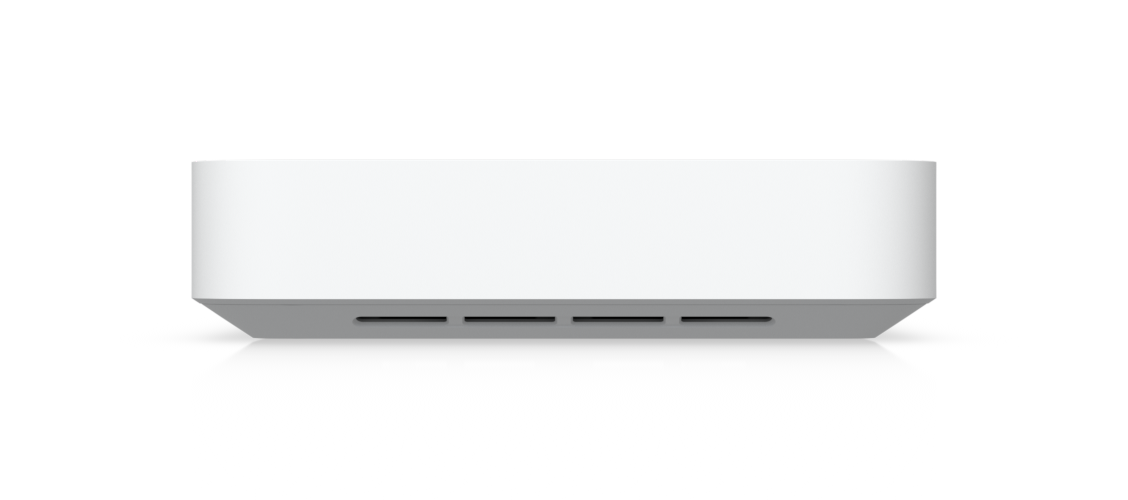

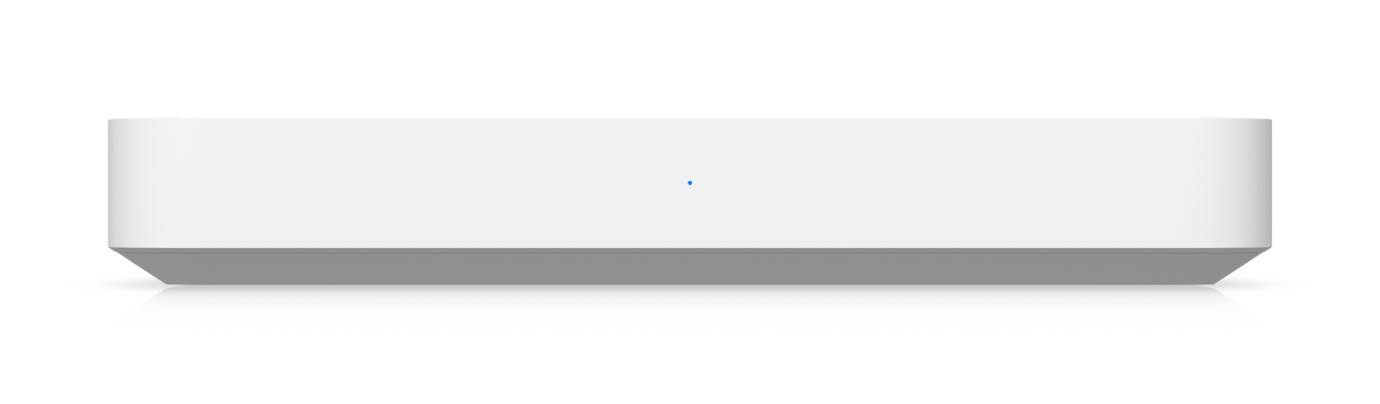

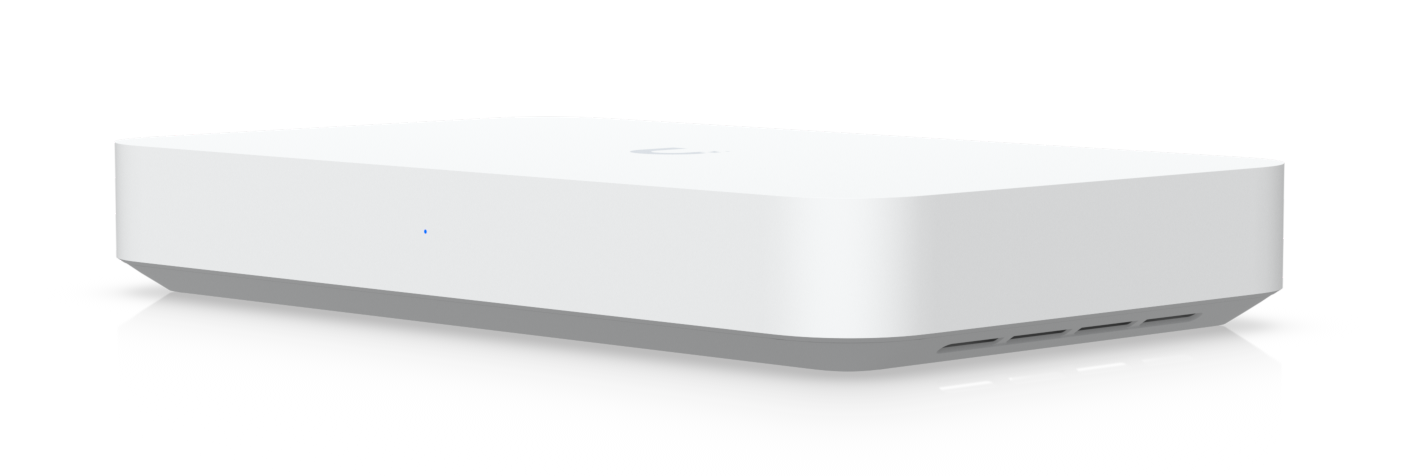

Ubiquiti UXG-Fiber Gateway Fiber Router


In Stock at Warehouse

Processing Time (after payment approval) : 1-2 business days
ENQUIRY
  • UXG-Fiber
  • UXG-Fiber
  • NETWORKING
Ubiquiti Gateway Fiber Router, 1x SFP+ WAN Port, 1x 10Gbe WAN Port, 4x 2.5Gbe Ports, 1x SFP+ Port, CloudKey Required for UniFi Management
1 Year Warranty


Product Features

Gateway Fiber

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port

10G Performance

The Gateway Fiber delivers high-speed networking with its 10G SFP+ and 10 GbE RJ45 WAN ports, ensuring rapid data throughput. Its compact desktop design makes it suitable for various deployment scenarios without compromising on performance.

10G Performanc
Advanced Security Features

Advanced Security Features

With support for Intrusion Detection and Prevention Systems (IDS/IPS) and a throughput of up to 5 Gbps, the Gateway Fiber enhances network security. It also offers advanced firewall capabilities, including application-aware Layer 7 filtering and content filtering.

Integrated 4-Port 2.5 GbE Switch with PoE+

Featuring an integrated 4-port 2.5 GbE switch, including one PoE+ port, the Gateway Fiber simplifies network setups by reducing the need for additional hardware. This integration allows for efficient connectivity of multiple devices directly to the gateway.

Integrated 4-Port 2.5 GbE Switch with PoE+

Compact Form Factor

Designed with a sleek and compact desktop form factor, the Gateway Fiber fits neatly into various environments without occupying excessive space.

Flexible Management Options

The Gateway Fiber can be managed through a CloudKey, Official UniFi Hosting, or a UniFi Network Server, providing flexibility in network administration. This versatility ensures that users can choose the management solution that best fits their infrastructure.




Product Specs


Technical Specs
Overview
Dimensions
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+
With CyberSecure
VPN & SD-WAN
Licence-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client
OpenVPN: Yes
WireGuard: Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF: Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Hardware
PoE Budget
30W
Max. PoE Wattage per Port by PSE
PoE+: 30W
Voltage Range PoE Mode
50–57V
Max. Power Consumption
25W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100–240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
2 GB
Weight
605 g (1.3 lb)
Enclosure Material
Polycarbonate
Management
Ethernet
Bluetooth
LEDs
Ethernet: Yes
SFP+: Yes
System: Yes
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Networking
  • 10 G
