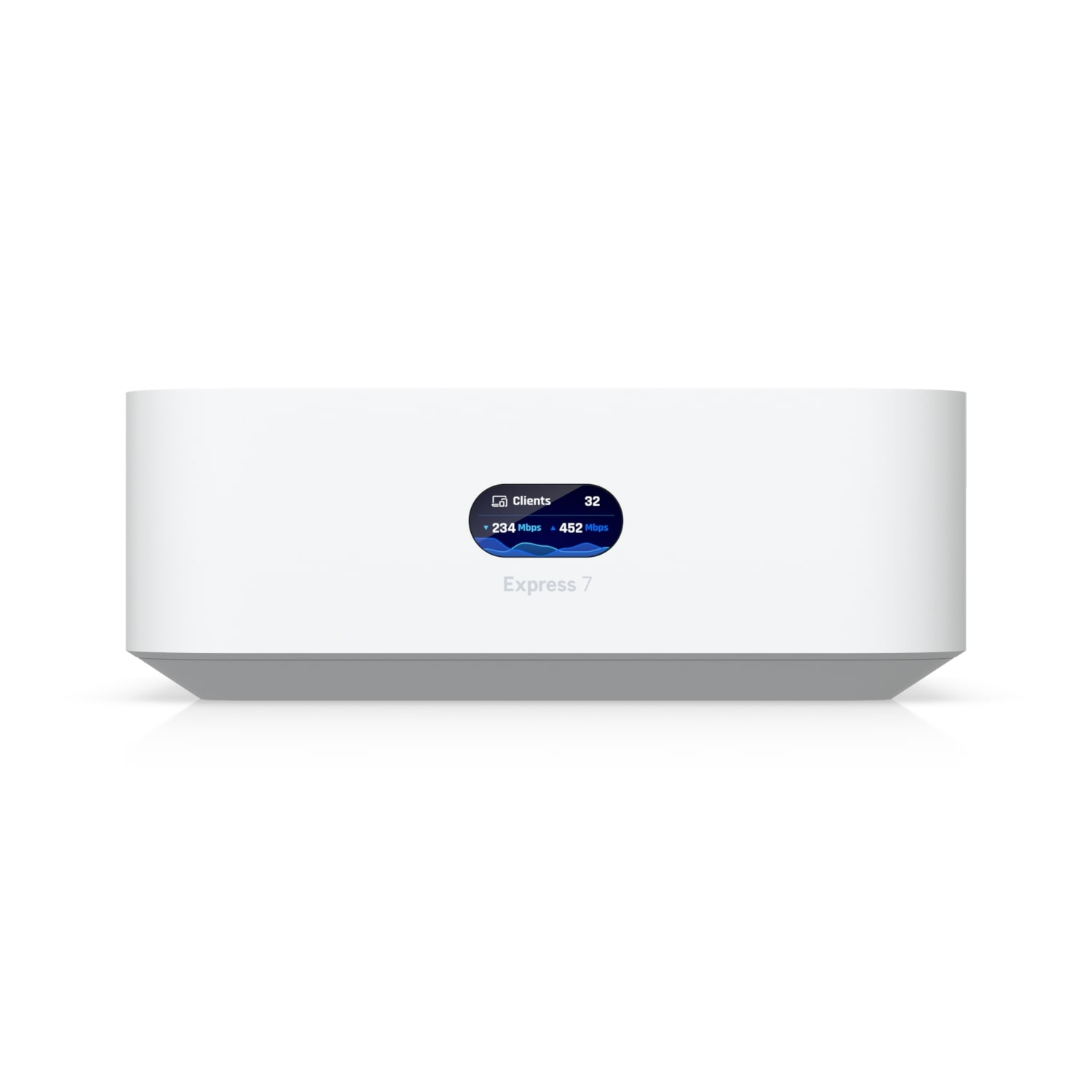

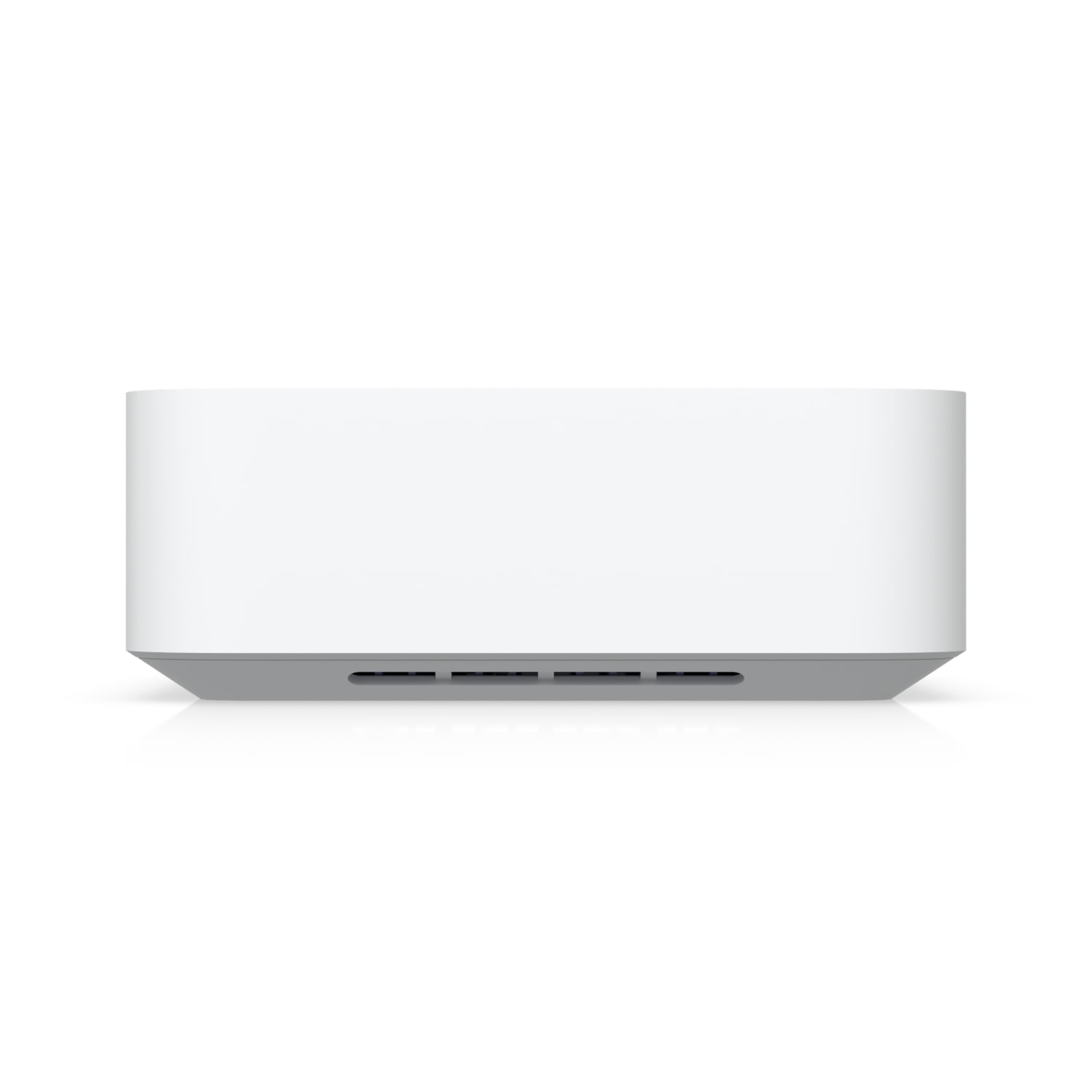

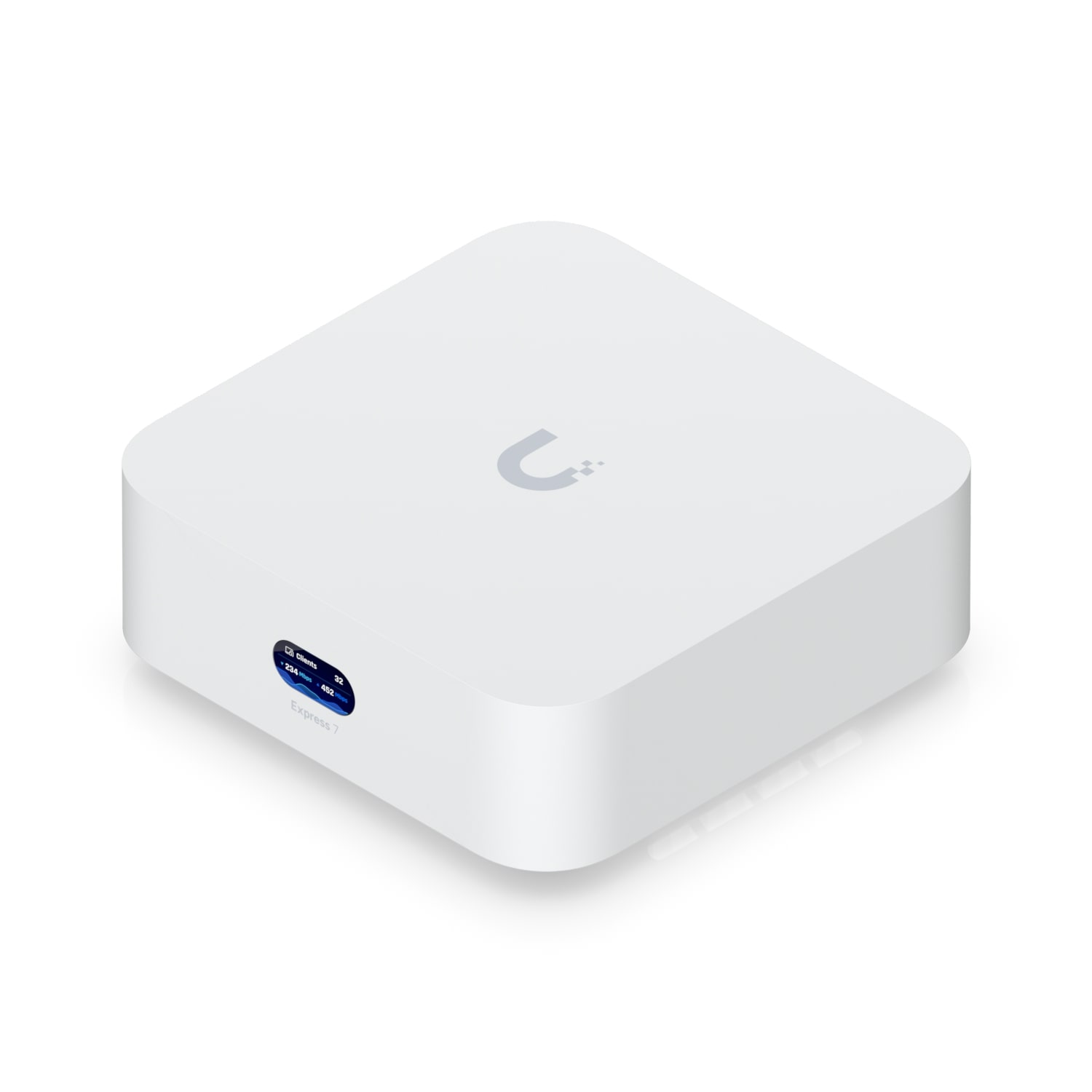

Ubiquiti UX7 UniFi Express 7 Router


In Stock at Warehouse

Processing Time (after payment approval) : 1-2 business days
ENQUIRY
  • PCC3850
  • UX7
  • NETWORKING
Ubiquiti UniFi Express 7 Router, Wi-Fi 7, 1x 10Gbe WAN Port, 1x 2.5Gbe Port
1 Year Warranty


DESCRIPTION

UniFi Express 7

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

UniFi Application Suite
30 UniFi Devices
300 Client Devices

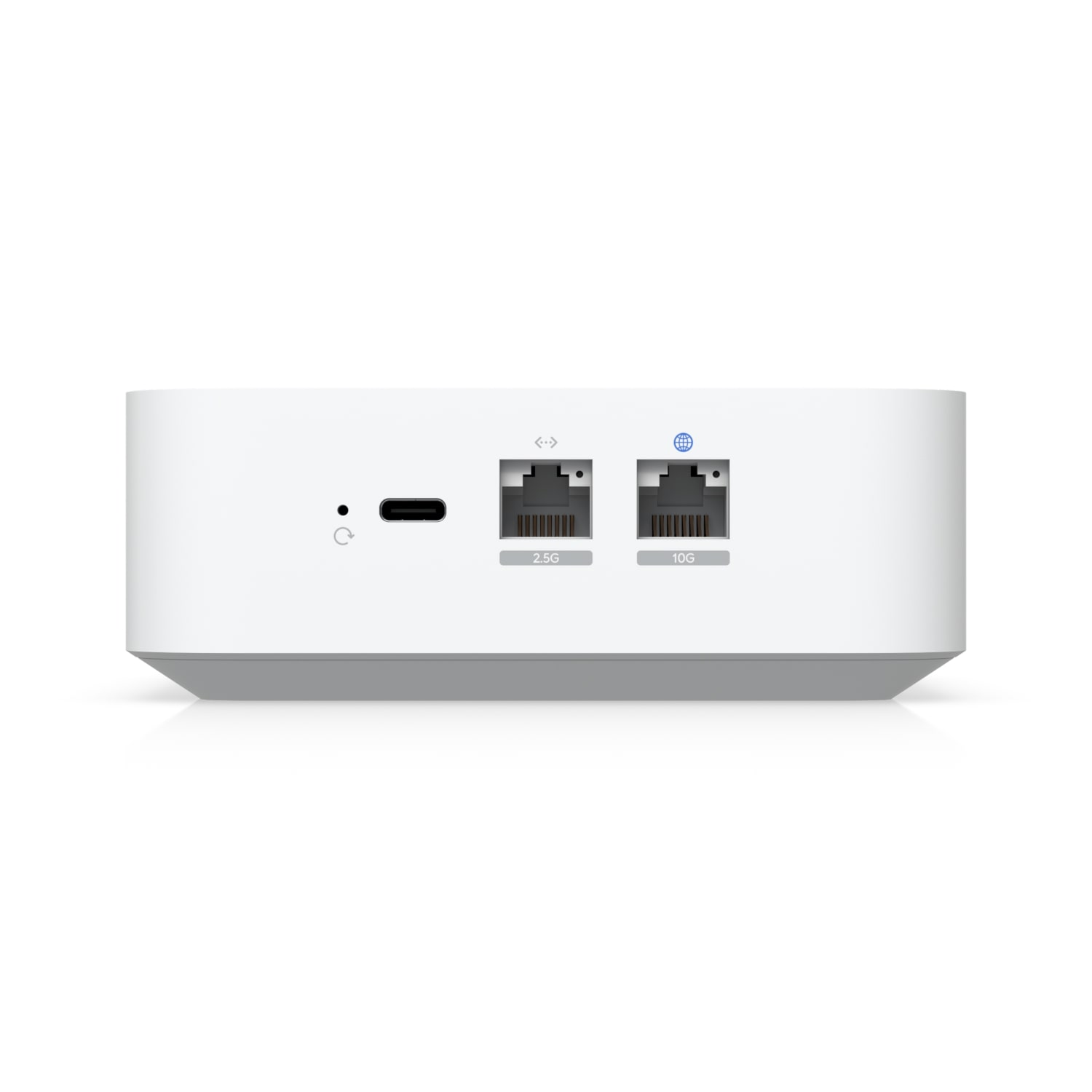

(1) 10 GbE RJ45 WAN Port
(1) 2.5 GbE RJ45 LAN Port
Built-in WiFi 7 access point with 6 GHz support


Instant UniFi. Just Add Internet.

A complete UniFi networking stack in an impressively compact, plug-and-play form factor. Power an entire network, or simply mesh as an access point.

SD-WAN & VPN for Hybrid Work

Effortlessly connect a distributed organisation.


ISP Home Gateway

Manage home gateways and mesh WiFi with ease.

ISP Home Gateway
WiFi for Remote Sites

Deploy powerfully simple networking in minutes.

WiFi for Remote Sites

High-Capacity Device Management

Capable of managing over 30 UniFi devices and supporting more than 300 clients, the UX7 is designed to handle extensive networks. This makes it suitable for growing businesses or tech-savvy households with numerous connected devices.

High-Capacity Device Management
Integrated Wi-Fi 7 for High-Speed Connectivity

Integrated Wi-Fi 7 for High-Speed Connectivity

Equipped with the latest Wi-Fi 7 technology, the UX7 supports the 6 GHz band, offering faster speeds and reduced latency. This ensures seamless streaming, gaming, and efficient handling of bandwidth-intensive tasks.

Deployment

Advanced Networking Features

The UX7 offers advanced networking functionalities, including VLAN support and guest traffic isolation, enhancing network security and management. These features provide administrators with greater control over network traffic and user access.


Technical Specs
Overview
Dimensions
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)
UniFi Application Suite
Network
Yes
Managed Devices
30
Simultaneous Users Connected
300
Connectivity
Default WAN Ports
(1) 10 GbE RJ45
LAN Ports
(1) 2.5 GbE RJ45
IDS/IPS Throughput
2.3 Gbps
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Dynamic Routing
OSPF
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
Policy-based WAN and VPN Routing
Yes
Customisable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput - 6 GHz
5.7 Gbps
Throughput - 5 GHz
4.3 Gbps
Throughput - 2.4 GHz
688 Mbps
MIMO - 6 GHz
2 x 2 (DL/UL MU-MIMO)
MIMO - 5 GHz
2 x 2 (DL/UL MU-MIMO)
MIMO - 2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain - 6 GHz
6 dBi
Antenna Gain - 5 GHz
7 dBi
Antenna Gain - 2.4 GHz
4 dBi
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio (Gateway Mode), 4 per Radio (AP Mode)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Hardware
Max. Power Consumption
22W
Power Method
USB Type-C (5V DC/5A)
Power Supply
USB Type-C (5V DC/5A) (Adapter included)
Max. TX Power - 6 GHz
24 dBm
Max. TX Power - 5 GHz
26 dBm
Max. TX Power - 2.4 GHz
23 dBm
Supported Voltage Range
100-240V AC
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
422 g (14.9 oz)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet
Bluetooth
LEDs
Ethernet
ESD/EMP Protection
Air: ± 8kV, Contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
Software
VLAN
802.1Q
Guest Traffic Isolation
Yes
Application Requirements
UniFi Network Version 9.0.108 and later
