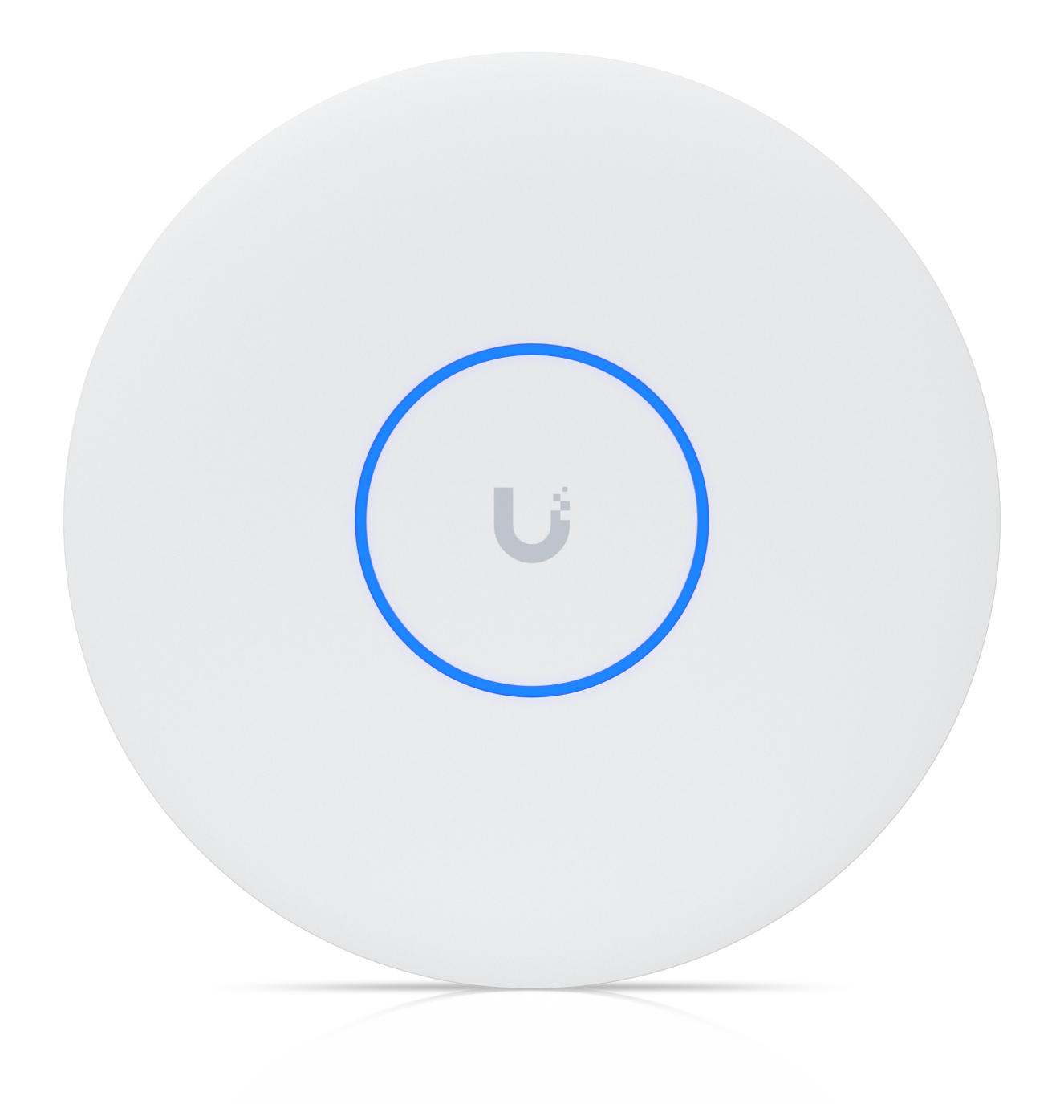

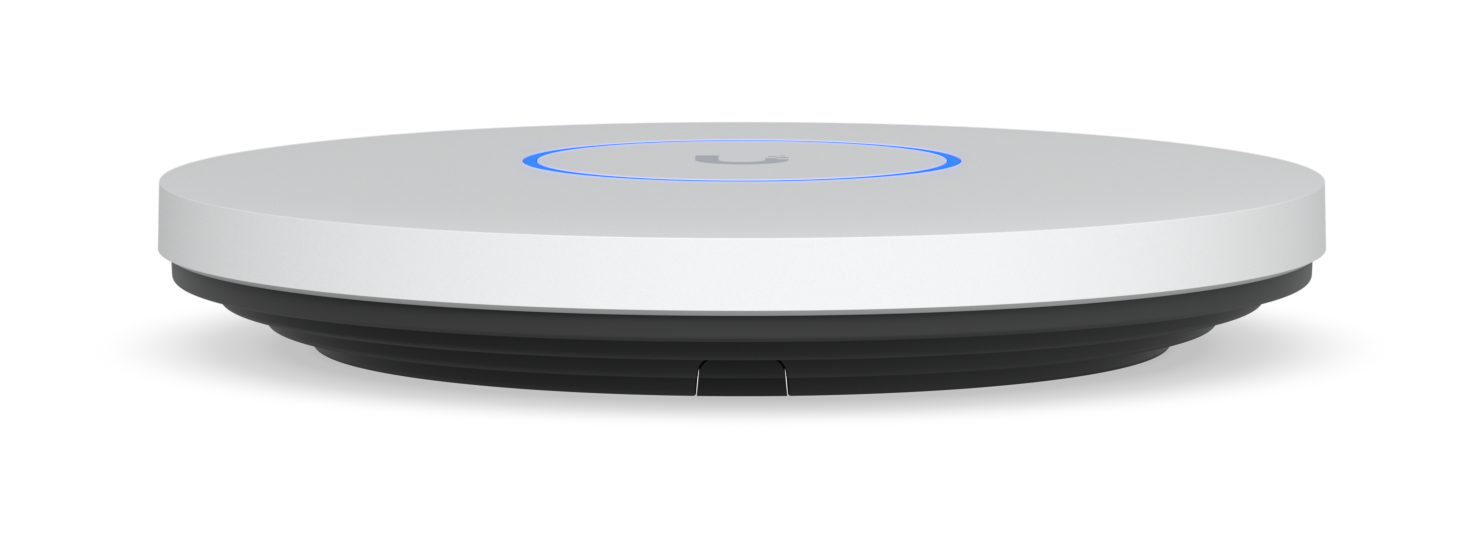

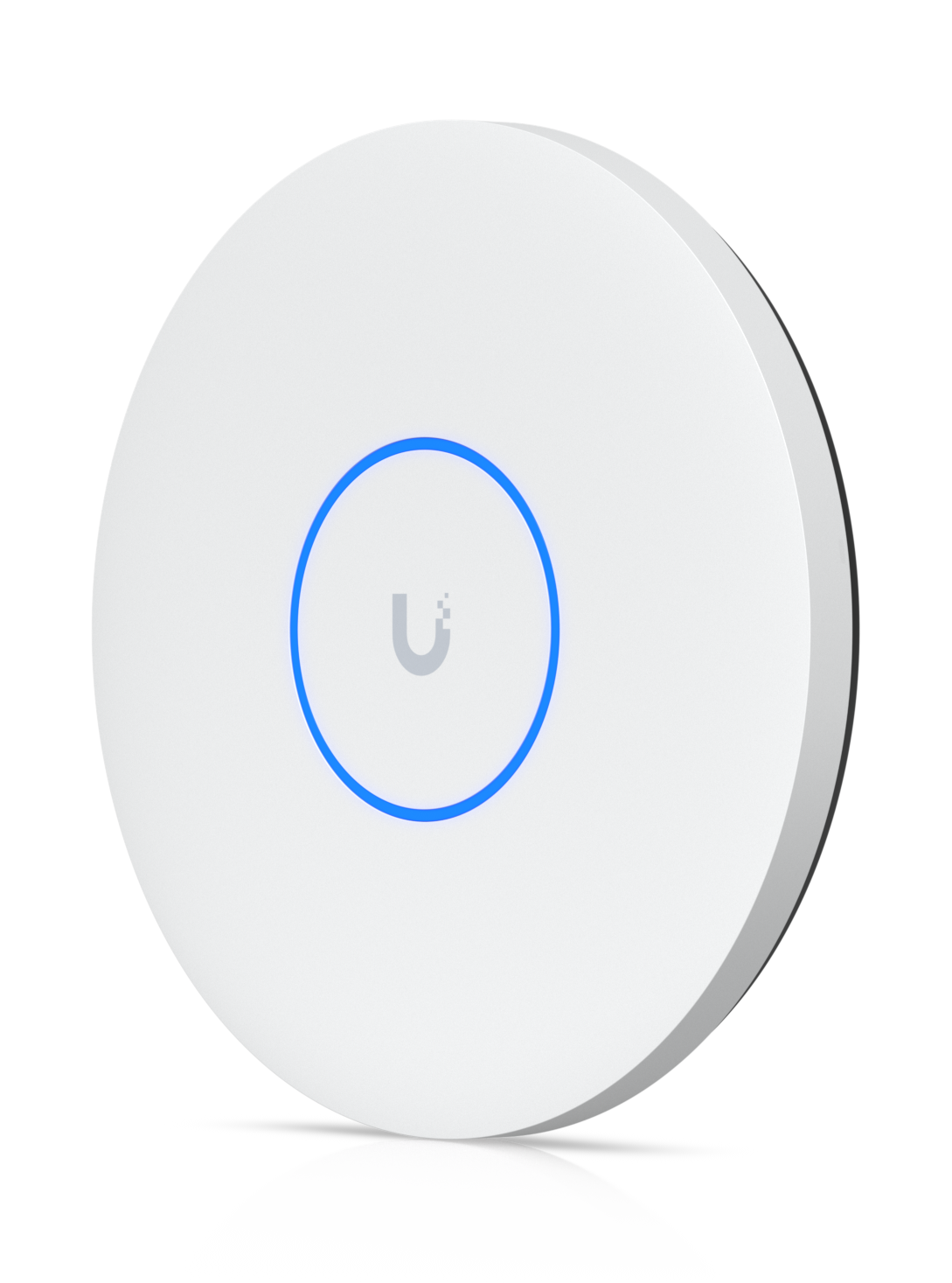

U7 Pro XG
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
6-Spatial Stream WiFi 7 with 6 GHz Support
Up to 140 m² (1,500 ft²) Coverage
300+ Connected Devices
6 GHz Radio
10/5/2.5/1 GbE Uplink
Power Method: PoE+Shipping and Pickup Options: Most Items Shipped Out the Same Day! Extensive Range of Parts and Accessories. Trust Our Gaming Specialists to Build It for You! Premier IT Gear Store with Super-Fast Shipping
Our Shops :
Seen it cheaper? Ask for a PCC Deal! Live chat or call 02 4231 4570
Ubiquiti UniFi Pro XG Wireless Indoor Access Point Wi-Fi 7
In Stock at Warehouse
- U7-Pro-XG
- U7-Pro-XG
- NETWORKING
Ubiquiti UniFi Pro XG Wireless Indoor Access Point, Wi-Fi 7, 1x 10Gbe PoE+ Port
1 Year Warranty
Product Features
6-Spatial Stream WiFi 7 with 6 GHz SupportUp to 140 m² (1,500 ft²) Coverage300+ Connected Devices6 GHz Radio10/5/2.5/1 GbE UplinkPower Method: PoE+The Birth of the U7 Pro XG
From the inside out, every mechanical and electronic detail has been meticulously shaped to strike the perfect balance between aesthetics and performance. Our new thermal architecture allowed us to create our sleekest form factor ever, all while preserving the timeless look that UniFi fans know and love.
Performance That Fit Your Needs
Ideal for most network environments, delivering robust performance with the latest WiFi 7 capabilities, including MLO, and 3+ Gbps client performance.
Supporting 10G PoE Switching
U7 Pro XG is equipped with 10 GbE ports to expose the performance potential of Wi-Fi 7; as clients become more capable, it is not uncommon to see a single client capable of 3+ Gbps throughput.
Continuous Innovation
Of course, hardware is only as powerful as the software that drives it. By choosing UniFi, you’re tapping into a long-term ecosystem of innovation. UniFi Network 9 advancements are set to roll out throughout the year, bringing next-level networking features, intelligence, and analytics to every UniFi deployment.
A Palette for Every Environment
We know that a device’s appearance matters just as much as its performance—especially in environments where aesthetics are a priority. That’s why, for the first time, the U7 Pro XG comes in dual colour options, white and a new black variant. These new variants can blend seamlessly into any interior design, offering a choice that complements your deployment without compromising on power or function.
The Future of UniFi
If you’re looking to modernise your network with top-tier performance and a timeless yet modern look, the U7 Pro XG is here to usher you into the new era of WiFi: low latency, high speed, and a true wired experience without the cables.
Product Specs
Technical Specs
Overview
Dimensions
Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
10 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE+
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7):
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6):
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5):
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n:
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6):
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5):
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n:
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
22W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
750 g (1.7 lb)
Management
Ethernet
Enclosure Material
UV-stabilised polycarbonate, aluminium alloy
Mount Material
Stainless steel (SUS304), galvanised steel (SGCC)
LEDs
System: White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later (U7 Pro XG - White)
Version 9.0.114 and later (U7 Pro XG - White)
Networking
- 10 GbE RJ45
