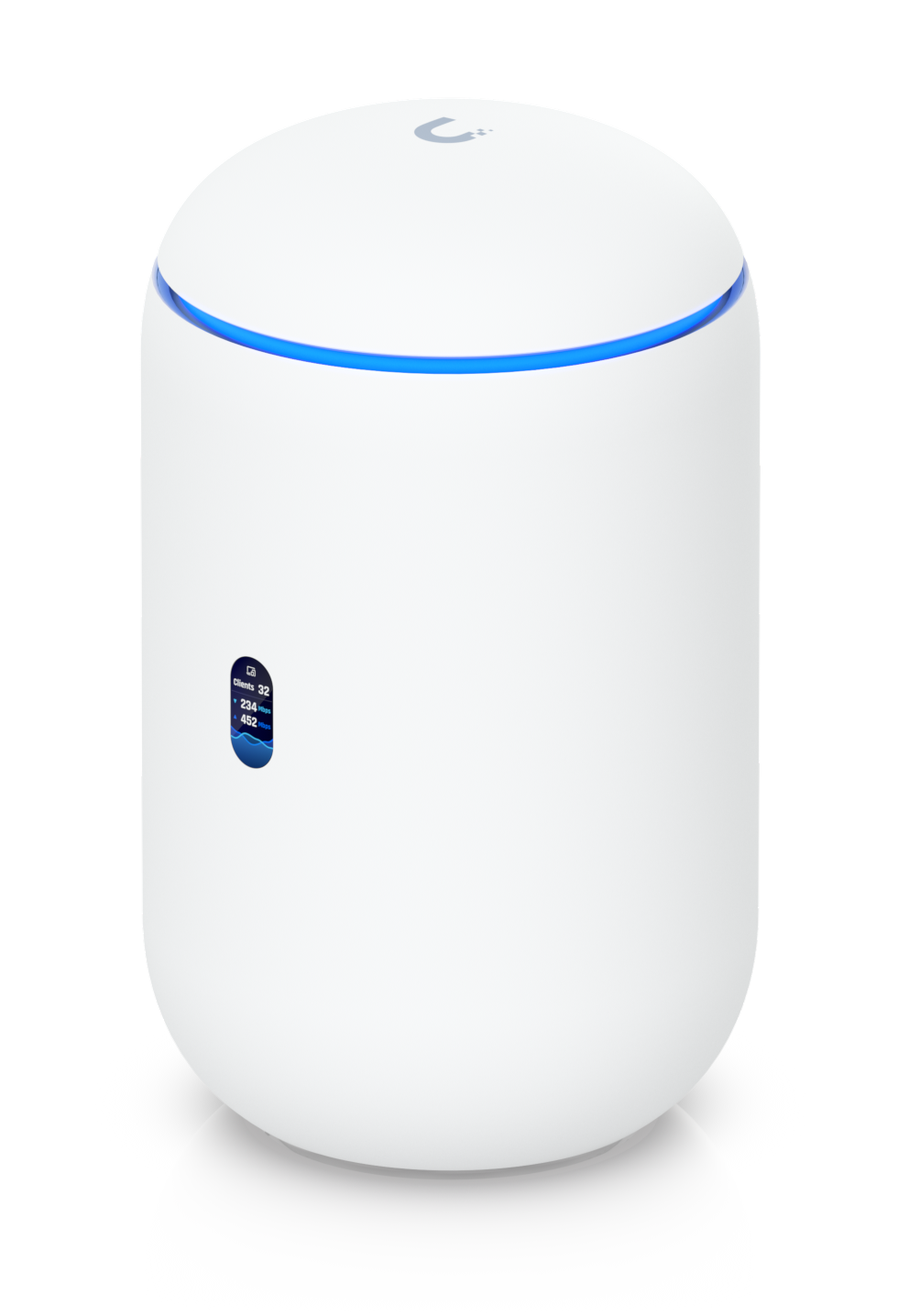

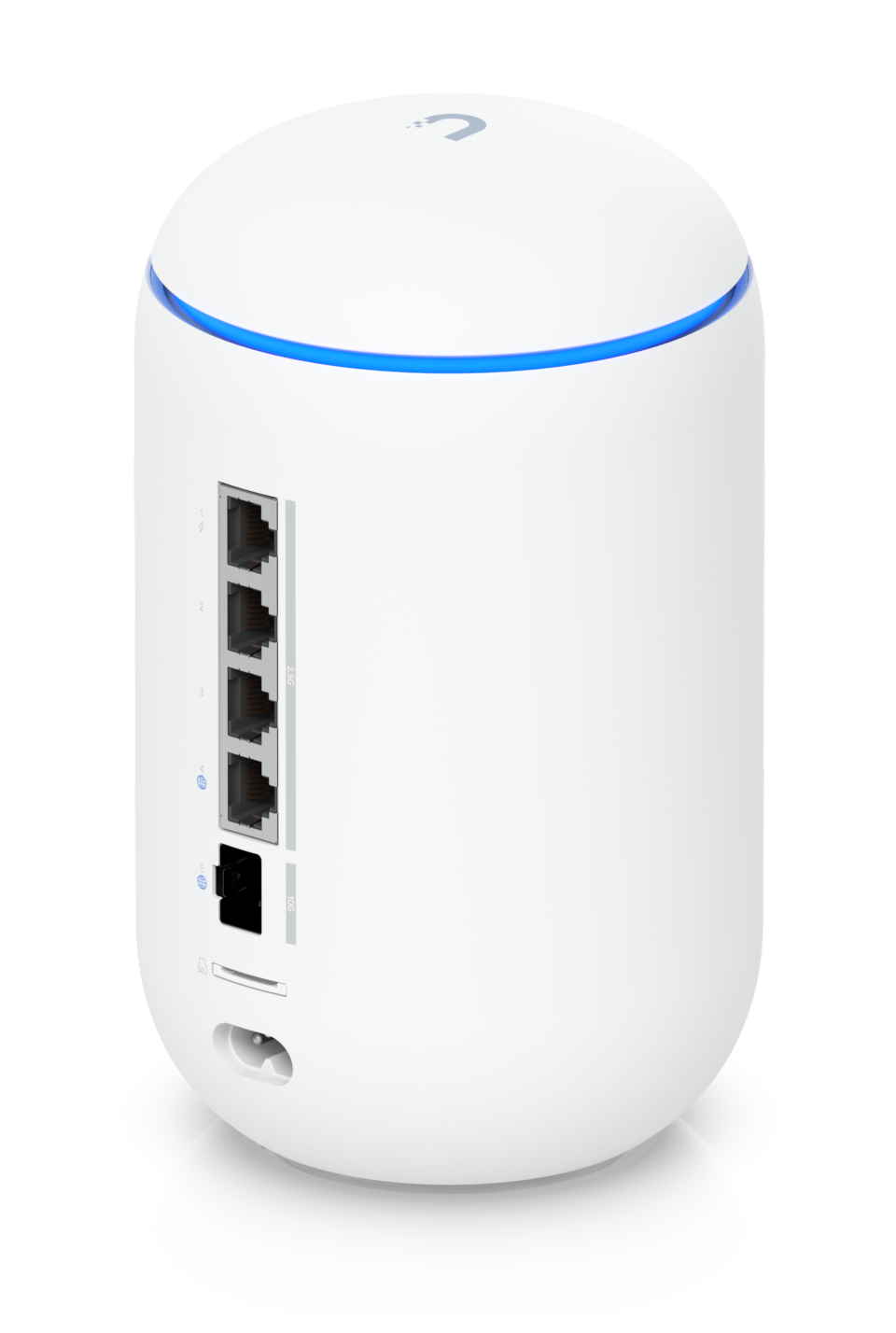

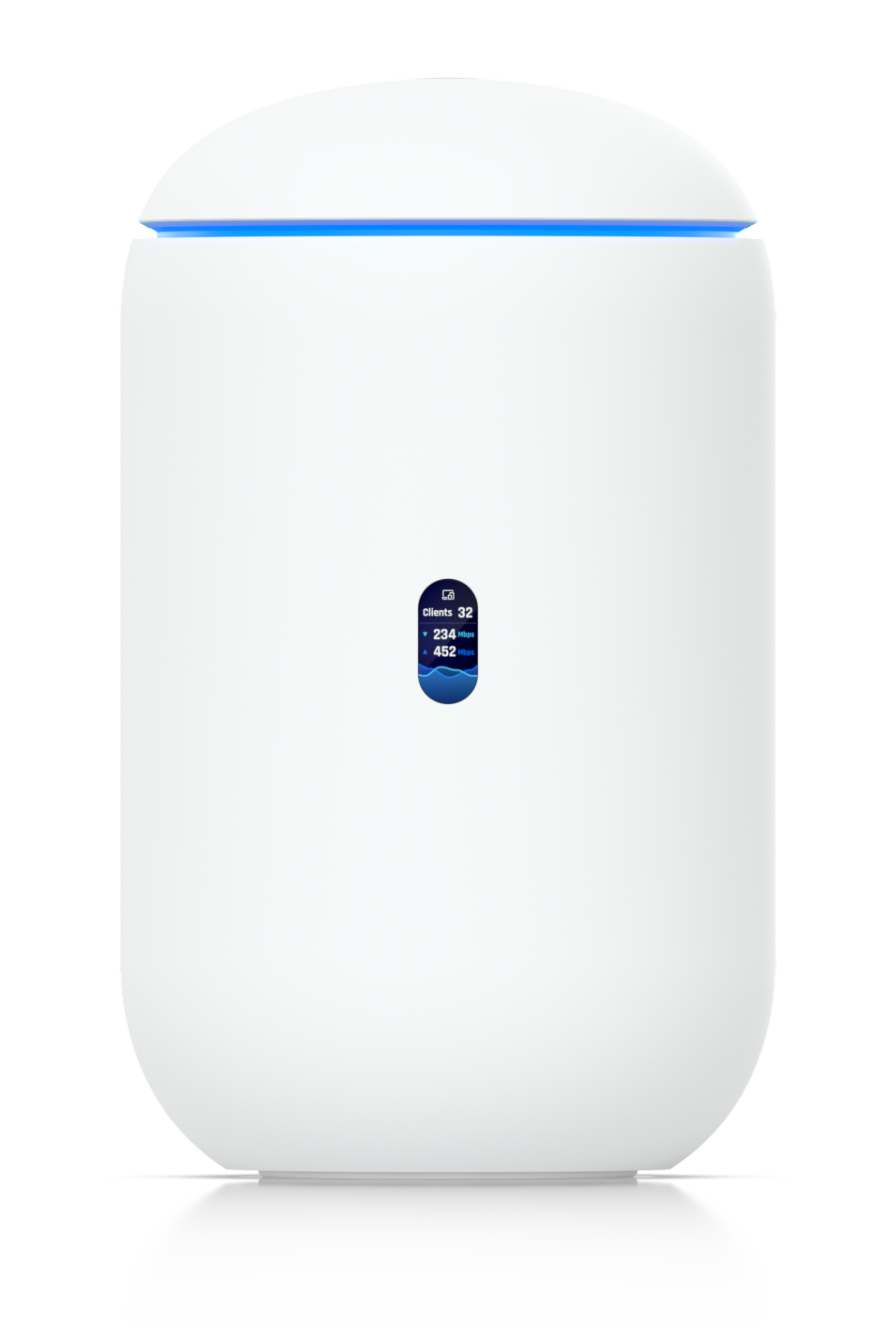

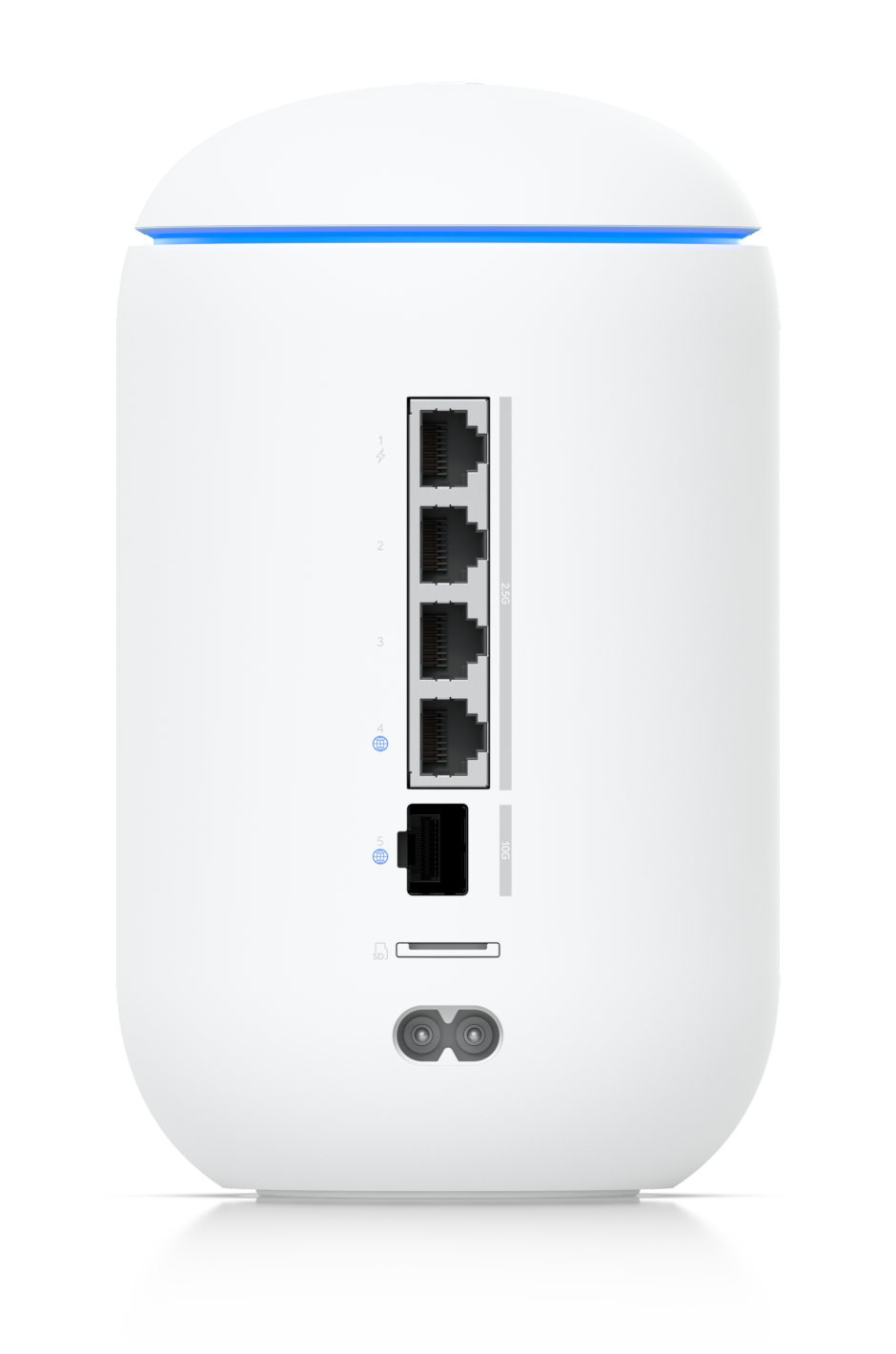

Ubiquiti UDR7 Dream Router 7 Wi-Fi 7

Name: Ubiquiti UDR7 Dream Router 7 Wi-Fi 7
Brand: UBIQUITI
SKU: UDR7
Price: 545 AUD
Availability: InStock

Available

In Stock at Warehouse

Processing Time (after payment approval) : 1-2 business days

SKU: UDR7
Manufacturing Code: UDR7
Categories: NETWORKING

Stock Availability

Wollongong	Out of stock
Shellharbour	Out of stock
Warrawong	Out of stock
Warehouse	Instock

Ubiquiti Dream Router 7, Wi-Fi 7, 1x SFP+ WAN Port, 1x 2.5Gbe WAN Port, 3x 2.5Gbe Ports, 1x 64GB MicroSD Card for NVR, Total PoE Budget 15.4W

1 Year Warranty

Product Features

Dream Router 7

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.

UniFi Application Suite

30+ Managed UniFi Devices

300+ Simultaneous Users Connected

(1) 10G SFP+, (1) 2.5 GbE RJ45

(3) 2.5 GbE RJ45 including (1) PoE

Built-in WiFi 7 with 6 GHz support

Plug-and-Play UniFi

The Dream Router 7 serves as a desktop 10G cloud gateway, delivering high-speed networking with integrated Wi-Fi 7 support. This ensures enhanced wireless performance, reduced latency, and seamless connectivity for modern applications.

UniFi Starts Here

Desktop gateway firewall with an integrated WiFi 7 access point that powers your network and full UniFi application suite.

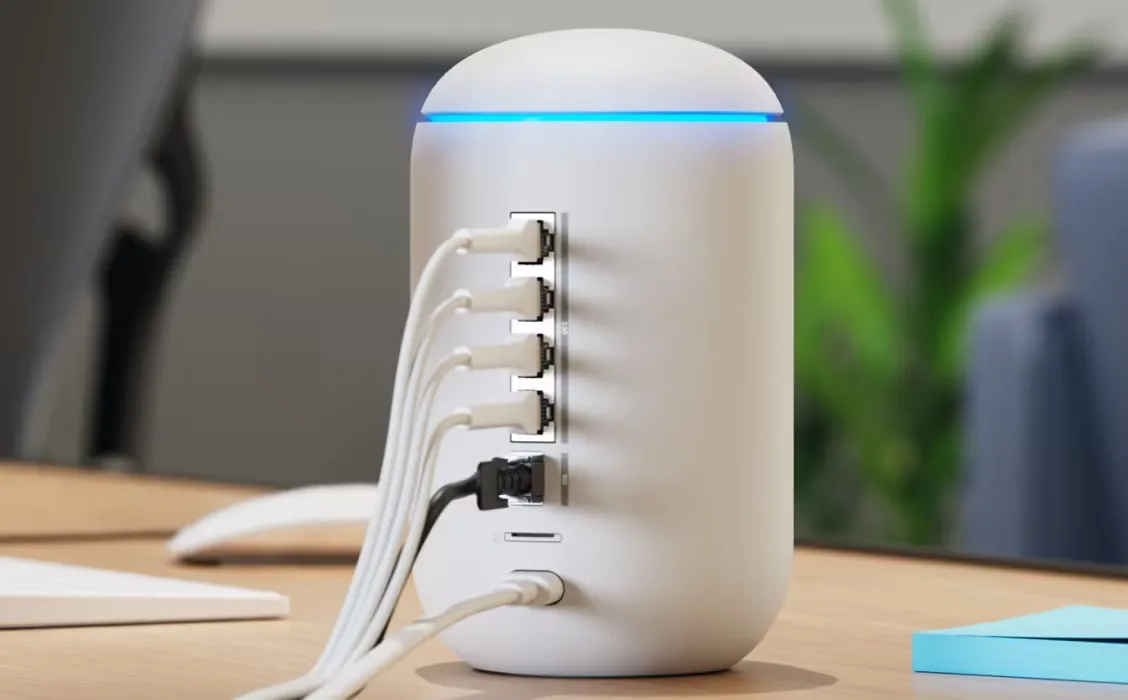

10G SFP+ WAN Port for High-Speed Connectivity

The Dream Router 7 features a 10G SFP+ port, enabling ultra-fast WAN connections to support high-bandwidth applications and future-proof your network infrastructure. In addition to its 10G WAN port, the UDR7 includes three 2.5 GbE RJ45 LAN ports, one of which supports PoE.

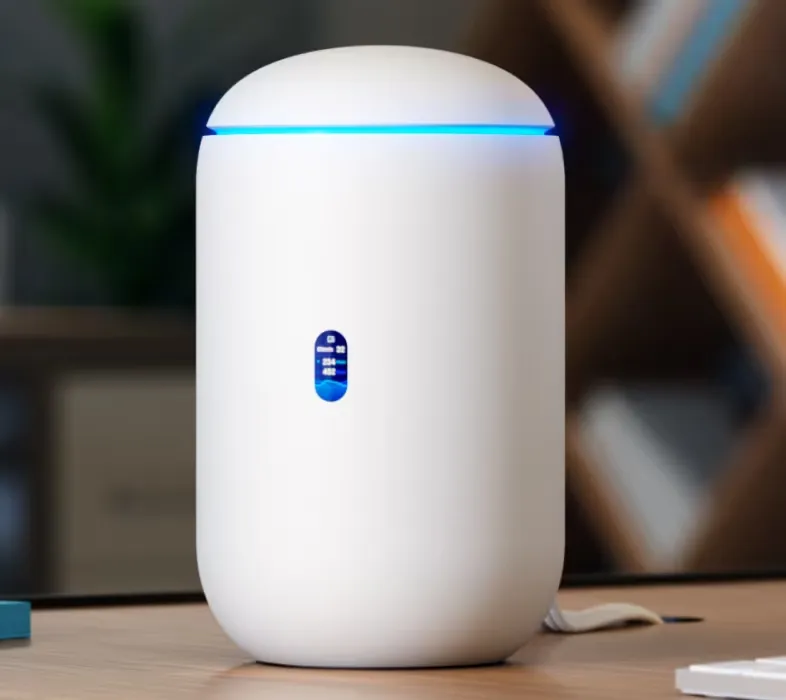

Comprehensive UniFi Application Support

Equipped with full UniFi application support, the Dream Router 7 allows for centralised management of network devices, security cameras, and more. This integration simplifies network administration and enhances overall system efficiency.

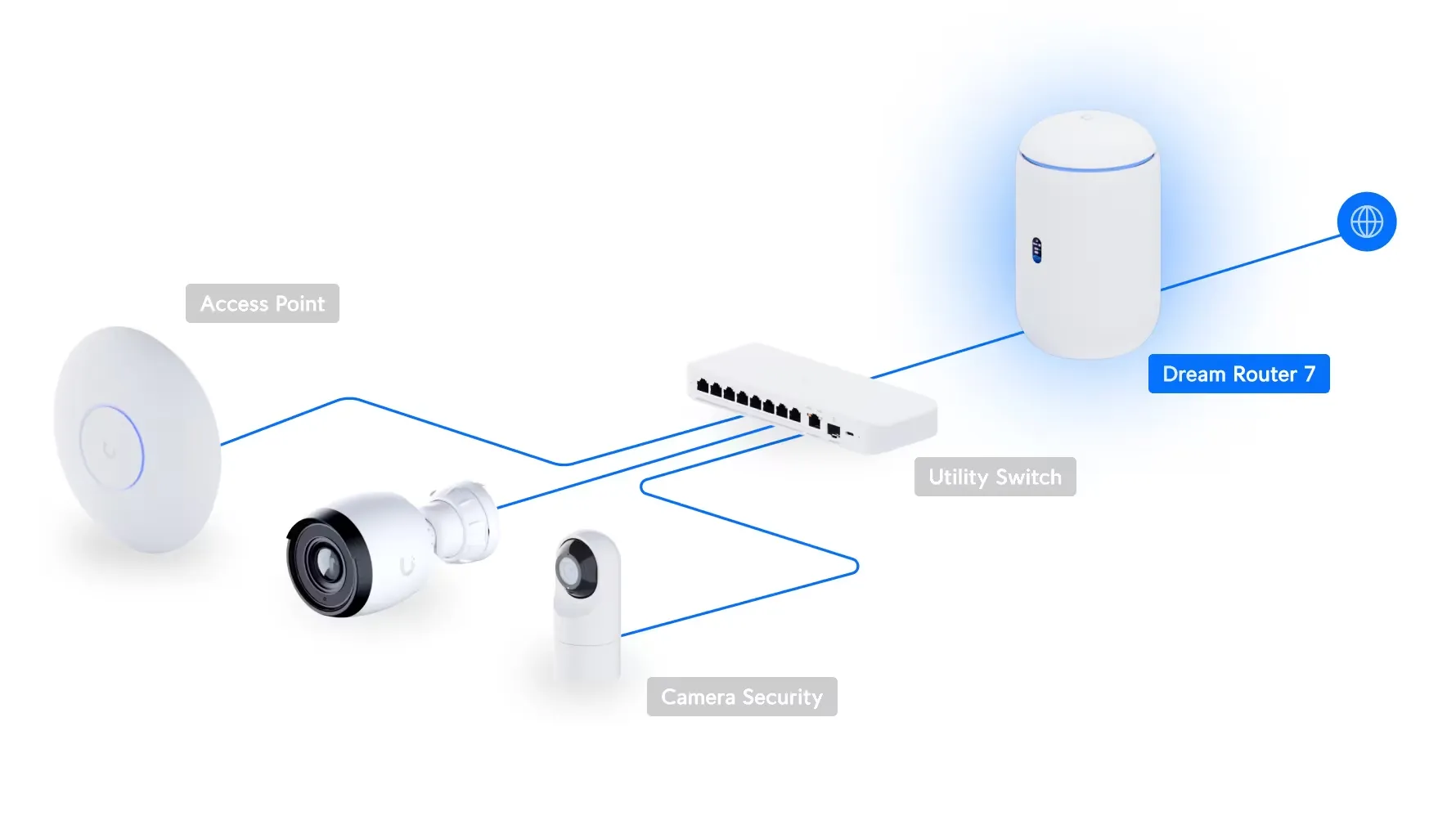

Deployment

Expandable Storage with MicroSD Support

With a built-in microSD card slot, the Dream Router 7 offers expandable storage options for applications like UniFi Protect. This provides flexibility in managing and storing surveillance footage and other critical data.

Product Specs

Technical Specs

Overview

Dimensions

Ø110 x 184.1 mm (Ø4.3 x 7.3")

UniFi Application Suite

Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes

Managed UniFi Devices

30+

Managed Cameras

(5) HD
(2) 2K
(1) 4K

Simultaneous Users Connected

300+

Default WAN Ports

(1) 10G SFP+
(1) 2.5 GbE RJ45

LAN Ports

(3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Coverage Area

160 m² (1,750 ft²)

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic: Yes
IPsec: Yes
OpenVPN: Yes

VPN Server

Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes

VPN Client

OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

2,000

Policy-based WAN and VPN Routing

Yes

Customisable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps

MIMO

6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 5 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio

Supported Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

NVR Storage

Pre-installed 64GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE: 15.4W

Voltage Range PoE Mode

44-57V

Max. Power Consumption

26W (Excluding PoE output)

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 50W

Max. TX Power

6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

1.1 kg (2.4 lb)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

System: Yes

ESD/EMP Protection

Air: ± 8kV, Contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network Version 9.0.108 and later

Networking

POE/NO POE PoE
