Ubiquiti UCG-Ultra Cloud Gateway Ultra Compact Router


In Stock at Warehouse

Processing Time (after payment approval) : 1-2 business days
ENQUIRY
  • UCG-Ultra
  • UCG-Ultra
  • NETWORKING

Ubiquiti Cloud Gateway Ultra Compact Router, 1x Gigabit WAN Port, 4x Gigabit Ports



The Ubiquiti Cloud Gateway Ultra is a powerful and compact multi-WAN UniFi Cloud Gateway featuring UniFi Network for full-stack network management, manages 30+ UniFi Network devices and 300+ clients, 1 Gbps routing with IDS/IPS, Multi-WAN load balancing 0.96 inch LCM status display and is powered by USB-C.

Features


Ubiquiti Cloud Gateway Ultra Feature 1

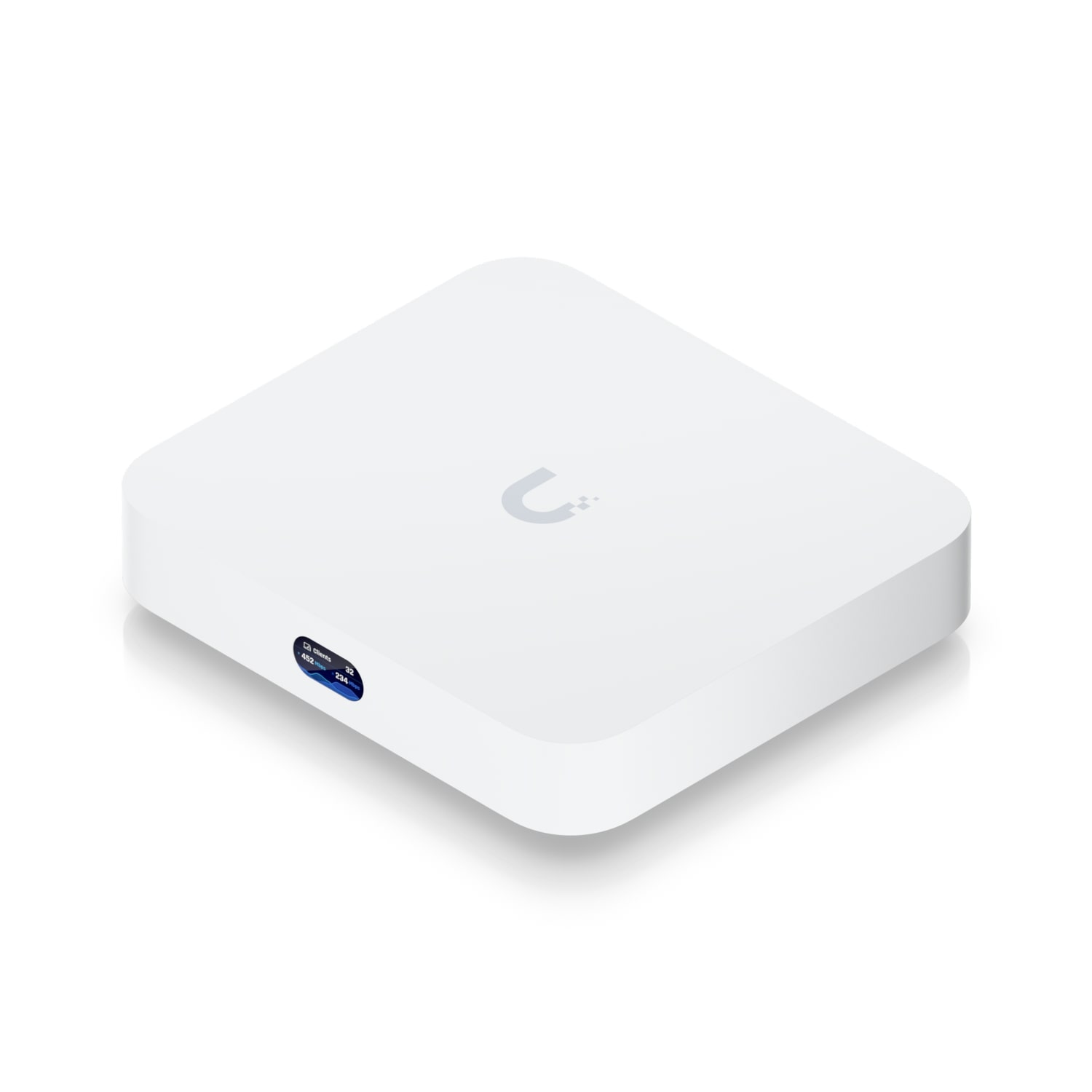

Cloud Gateway Ultra

Ubiquiti Cloud Gateway Ultra Feature 2

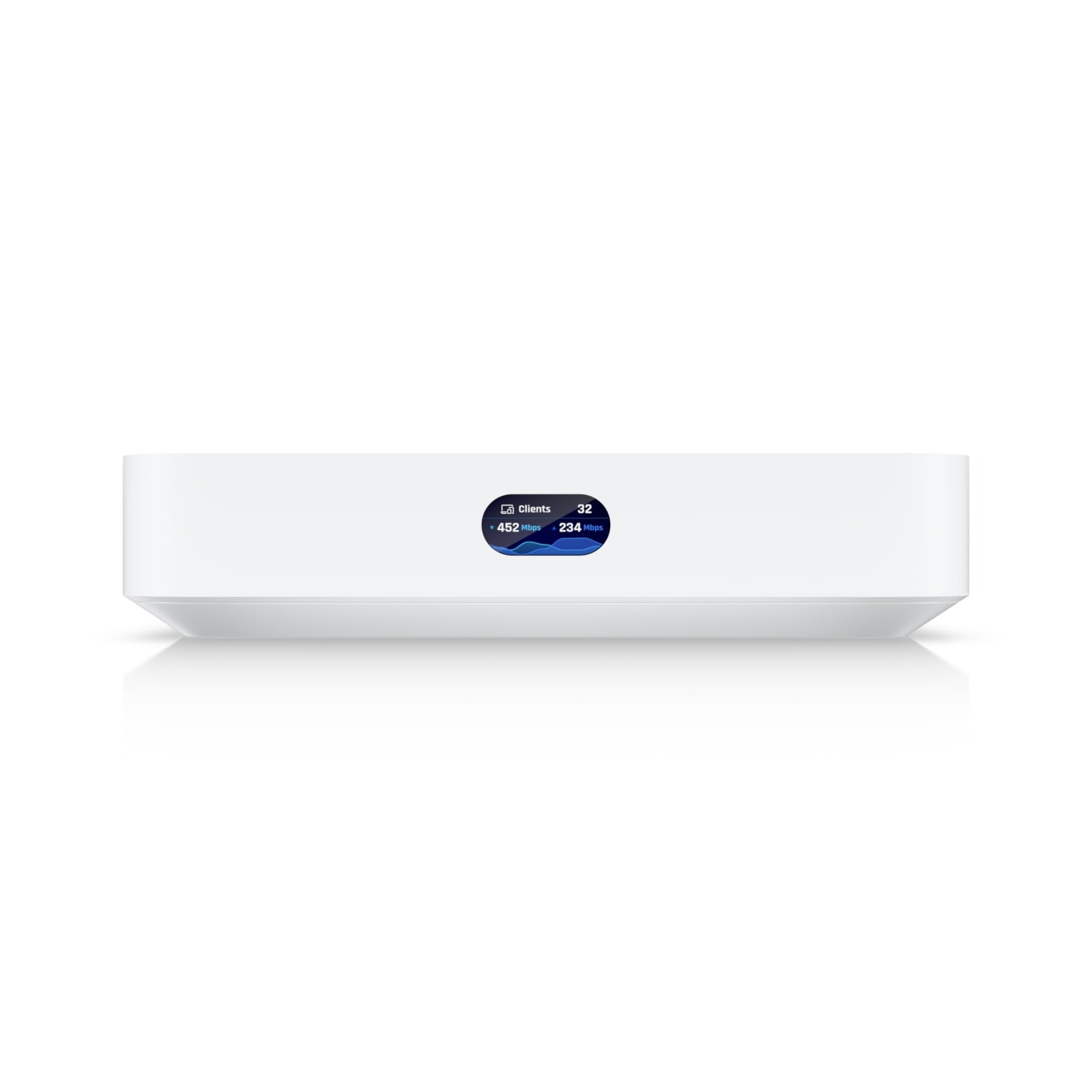

Front View

Ubiquiti Cloud Gateway Ultra Feature 3

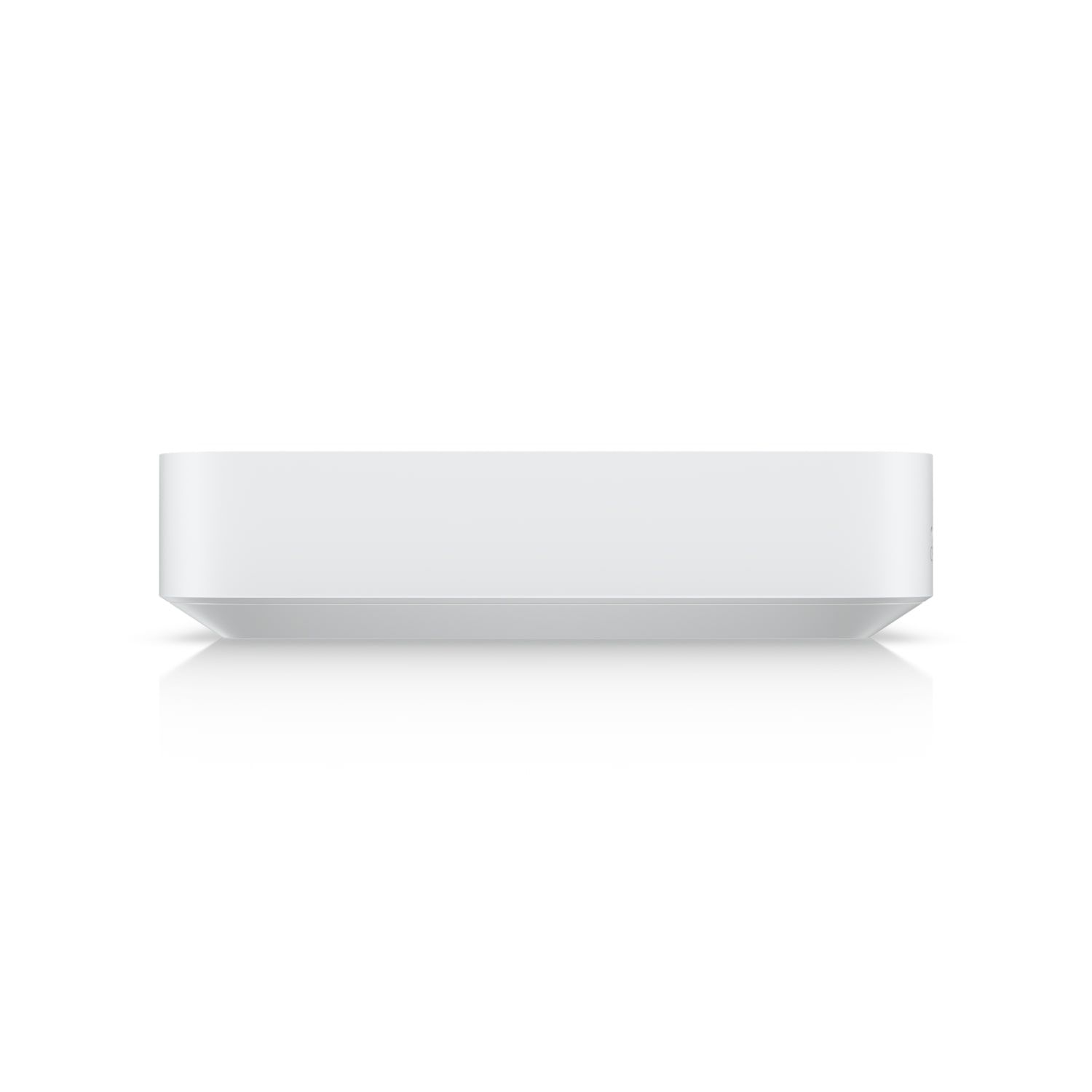

Back View

Ubiquiti Cloud Gateway Ultra Feature 4

Dimensions

Performance

  • Redundant WAN with failover and load balancing
  • Wi-Fi QoS with UniFi APs
  • Application, domain, and country-based QoS
  • Application and device type identification
  • Additional internet failover with LTE Backup
  • Internet quality and outage reporting

Next-Generation Security

  • Application-aware firewall rules
  • Signature-based IPS/IDS threat detection
  • Content, country, domain, and ad filtering
  • VLAN/subnet-based traffic segmentation
  • Full stateful firewall

Advanced Networking

  • License-free SD-WAN
  • WireGuard, L2TP and OpenVPN server
  • OpenVPN client
  • OpenVPN and IPsec site-to-site VPN
  • One-click Teleport and Identity VPN
  • Policy-based WAN and VPN routing
  • DHCP relay
  • Customisable DHCP server
  • IGMP proxy
  • IPv6 ISP support



Specifications


General Data

Model Number UCG-ULTRA

Mechanical

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 520 g (1.1 lb)
Enclosure Material Polycarbonate

Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB DDR4
On-Board Storage 16 GB eMMC
Management Interface Ethernet
Bluetooth
Networking Interface LAN: (4) GbE RJ45 ports
WAN: (1) 1 / 2.5 GbE RJ45 port
IDS/IPS Throughput 1 Gbps (Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.)
Power Method USB type C (5 V DC/3A)
Supported Voltage Range 100 – 240 V AC
Max. Power Consumption 6.2 W
LCM Display 0.96" status display
Button Factory reset
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

LEDs

Ethernet White: Link / Activity

Application Requirements

Mobile App UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later
