Ubiquiti UCG-Max UniFi Cloud Gateway Max Router
In Stock at Warehouse
- UCG-Max
- UCG-Max
- NETWORKING
Ubiquiti UniFi Cloud Gateway Max Router, 1x 2.5Gbe WAN Port, 4x 2.5Gbe Ports, 1x 512GB M.2 SSD for NVR
The Ubiquiti Cloud Gateway Max is a powerful and compact UniFi Cloud Gateway suppoting full UniFi applications and fitted with a 0.96 inc information display. The cutting-edge Quad-Core ARM Gateway weighing 519 g. with 3 GB DDR4 RAM, a 512 GB NVMe SSD, and advanced features like redundant WAN and application-aware firewall rules; ensuring seamless connectivity and robust security for enhancing your network performance.
Features
Cloud Gateway Max UCG-Max

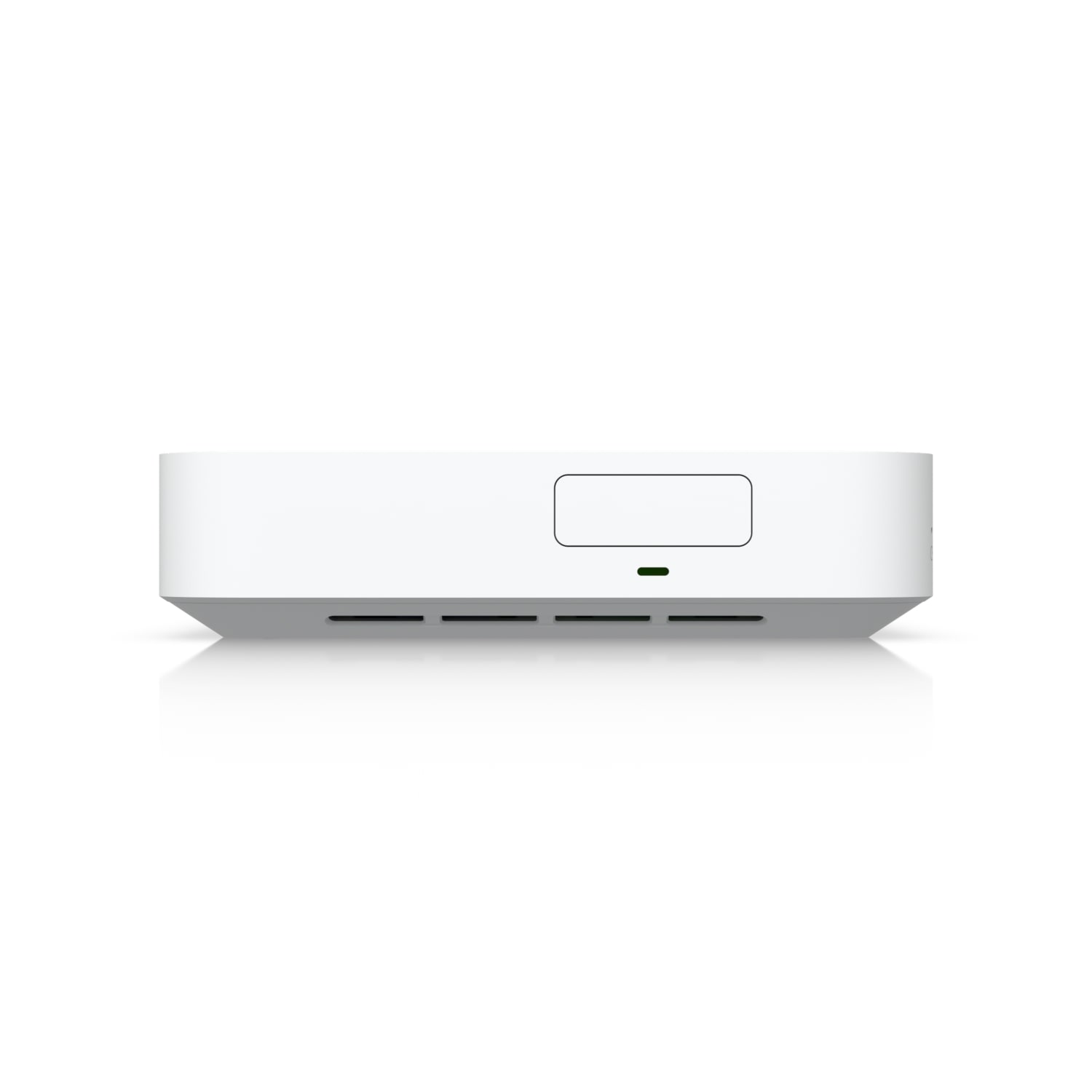

Front

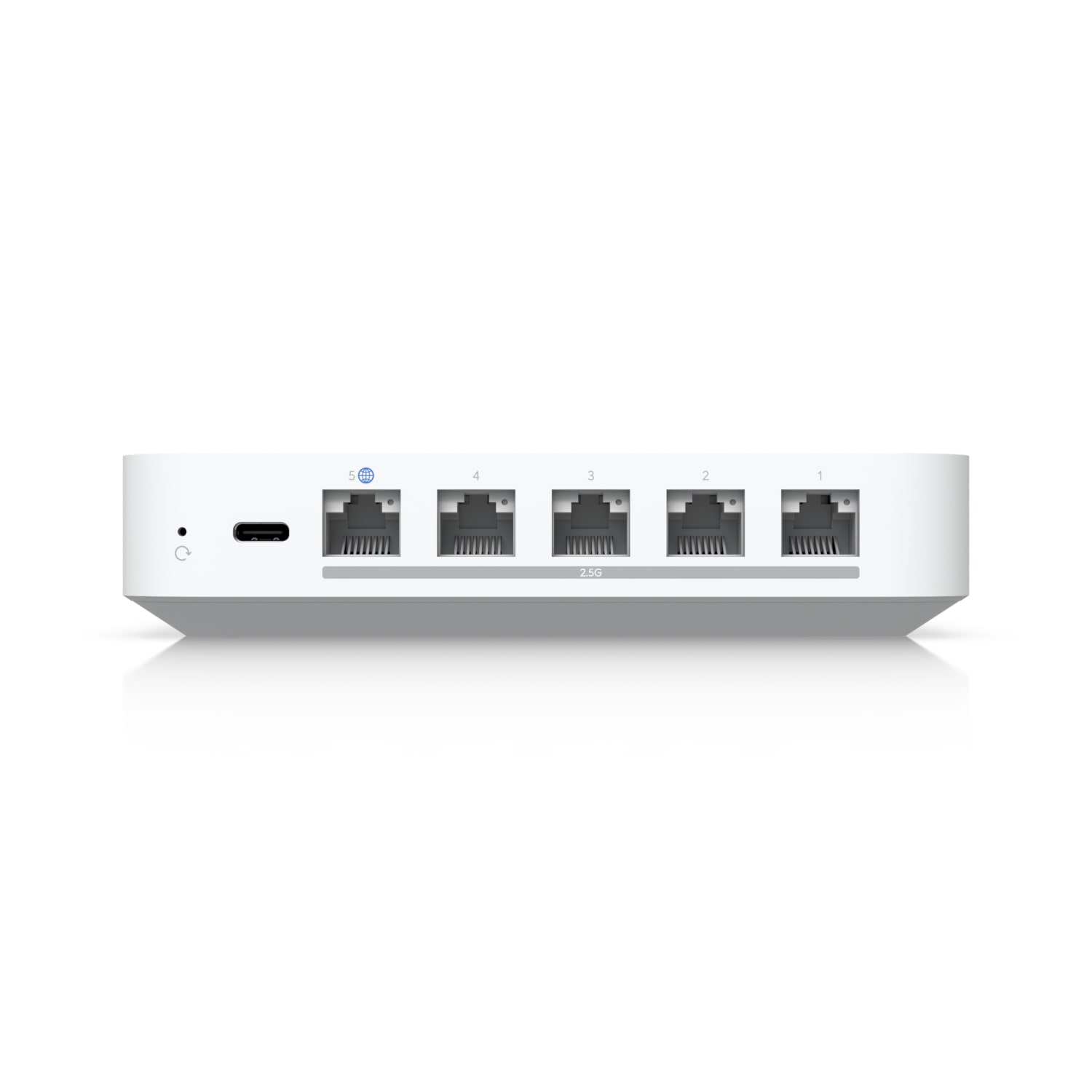

Back
Side
Specifications
General Data
| Model Number | UCG-MAX |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
Hardware
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB DDR4 |
| On-Board Storage | 512 GB NVMe SSD |
| Management Interface | Ethernet Bluetooth |
| Networking Interface | LAN: (4) 1/2.5 GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| IDS/IPS Throughput | 1.5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power Method | USB type C (5V DC/5A) |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 16.1W |
| LCM Display | 0.96" status display |
| Button | Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Gateway Features
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-Generation Security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced Networking | License-free SD-WAN Wire Guard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
LEDs
| Ethernet | Green: link/activity |
Application Requirements
| Mobile App | UniFi iOS™ and Android™: Version 10.17.2 and later |
