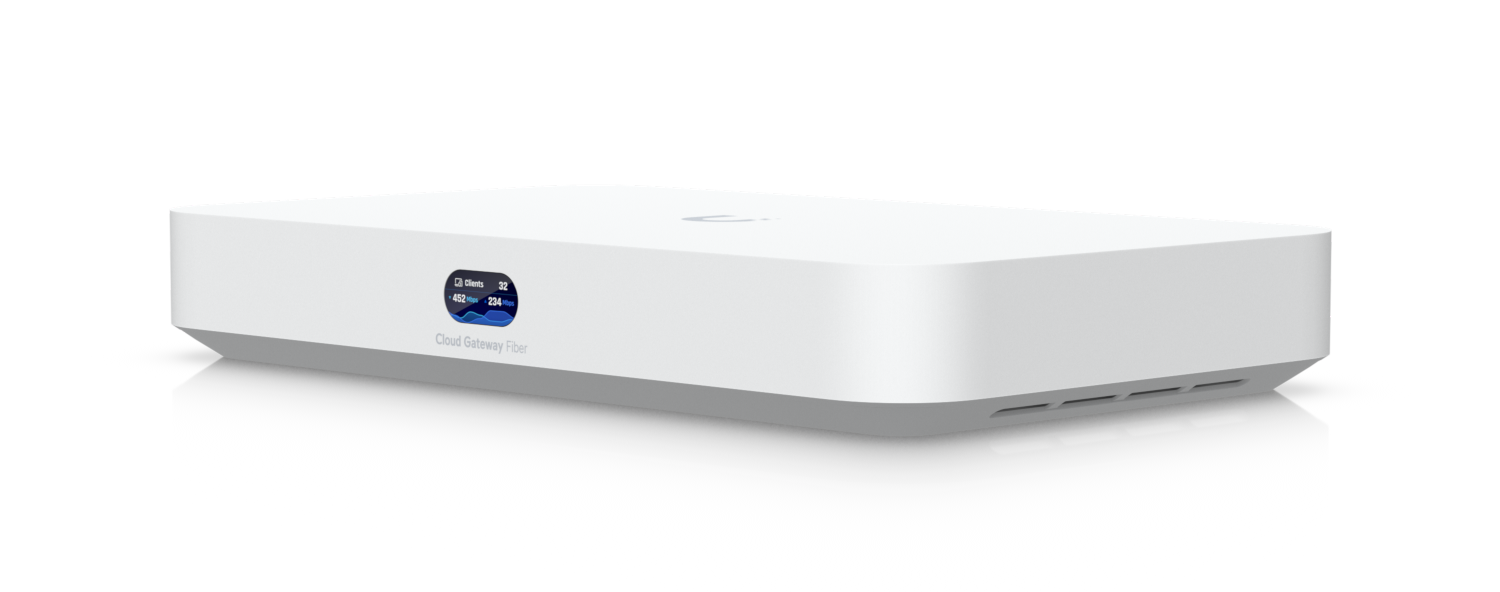

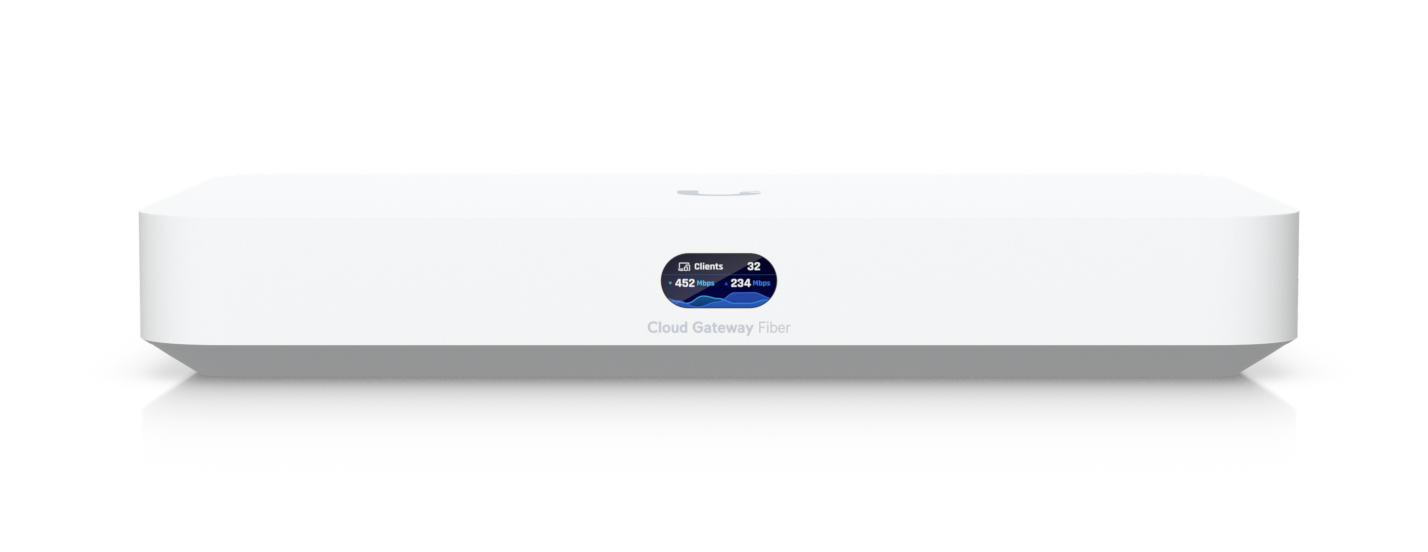

Ubiquiti UCG-Fiber Cloud Gateway Fiber


In Stock at Warehouse

Processing Time (after payment approval) : 1-2 business days
ENQUIRY
  • UCG-Fiber
  • UCG-Fiber
  • NETWORKING
Ubiquiti Cloud Gateway Fiber, 1x 10Gbe WAN Port, 1x SFP+ WAN Port, 4x 2.5Gbe Ports, 1x SFP+ Port
1 Year Warranty


Product Features

Cloud Gateway Fiber

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, NVR storage slot, and full UniFi application support.

Includes full UniFi application suite for device management
Manages 50+ UniFi devices and 500+ clients
5 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" status display

Compact and Powerful

UniFi routing and cybersecurity in a strikingly compact form factor. Site Manager ready with multi-WAN load balancing and full IPS security.

UniFi Site Manager Ready

Completely plug-and-play with no CloudKey required. Just add internet.


Integrated 4-Port 2.5 GbE Switch with PoE+ Support

Integrated 4-Port 2.5 GbE Switch with PoE+ Support

Equipped with a built-in 4-port 2.5 GbE switch, including one PoE+ port, the Cloud Gateway Fiber simplifies device connectivity and power management.

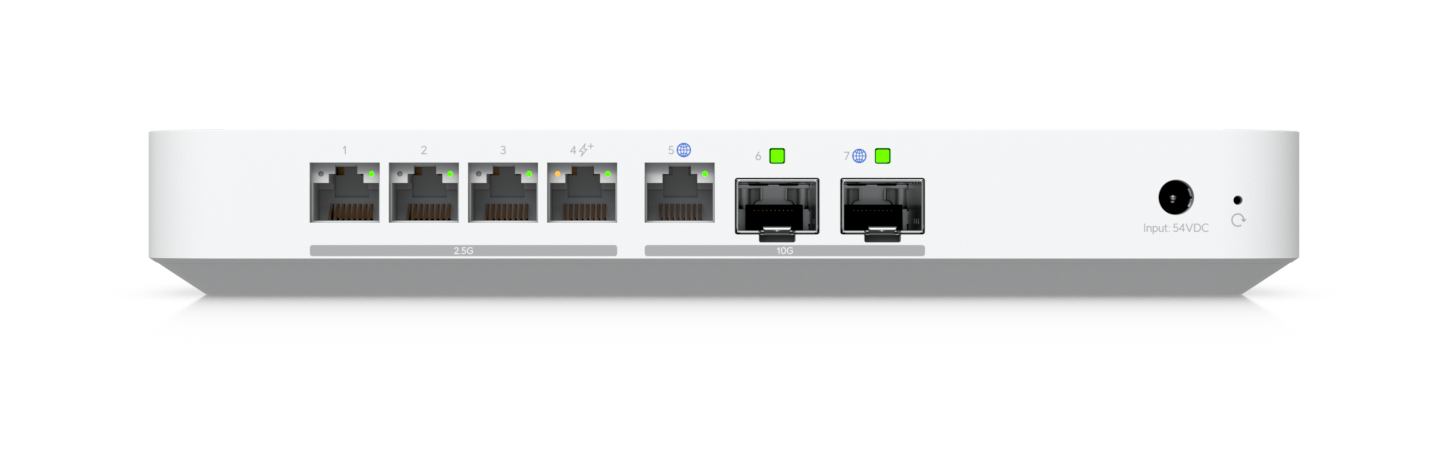

Dual 10G WAN Ports

Featuring both a 10G SFP+ and a 10 GbE RJ45 WAN port, the Cloud Gateway Fiber offers versatile high-speed internet connection options.

Dual 10G WAN Ports


Compact Form Factor

Designed with a sleek and compact desktop form factor, the Cloud Gateway Fiber fits neatly into various environments without occupying excessive space.

Scalable for Growing Businesses

Manage 50+ UniFi devices and 500+ connected clients through a single interface.



All the Power of UniFi

The complete UniFi experience in a strikingly compact form factor.



Product Specs


Technical Specs
Overview
Dimensions
212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")
UniFi Application Suite
Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices
50+
Managed Cameras
HD: 15
2K: 8
4K: 5
Simultaneous Users Connected
500+
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
LAN Ports
(1) 10G SFP+
(4) 2.5 GbE RJ45
IDS/IPS Throughput
5 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server
Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client
OpenVPN: Yes
WireGuard: Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF: Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Hardware
NVR Storage
NVMe SSD not included
*Third-party SSD installation requires tray accessory.
PoE Budget
30W
Max. PoE Wattage per Port by PSE
PoE+: 30W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
29.4W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100-240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Without SSD: 675 g (1.5 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet, Bluetooth
LEDs
Ethernet: Yes
SFP+: Yes
ESD/EMP Protection
Air: ±8kV, Contact: ±4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% non-condensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
Networking
  • 10 G
