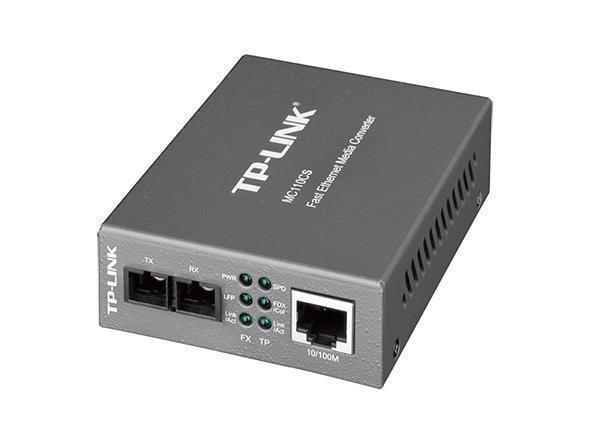

TP-LINK 10/100Mbps Single-Mode Media MC110CS Converter
In Stock at Warehouse
- MC110CS
- MC110CS
- NETWORKING
TP-LINK MC110CS 10/100Mbps Single-Mode Media Converter - 1 100M SC/UPC port - 1 100M RJ45 port (Auto MDI/MDIX) - Max Power Consumption 2.4W - Auto-negotiation of Half-Duplex / Full-Duplex transfer mode - Standards & Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x - Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port - Extend fiber distance up to 20km - MC110CS - 3 Years Warranty
The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
- Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extend fiber distance up to 20km
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
SPECIFICATION
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km |
| Ports | 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
