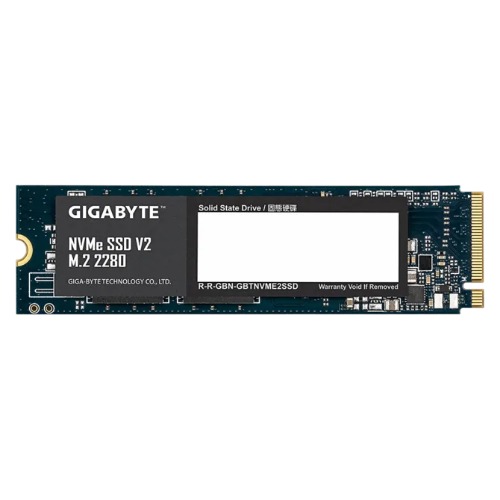

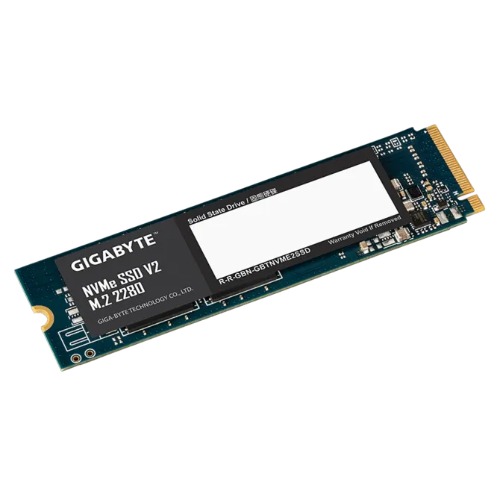

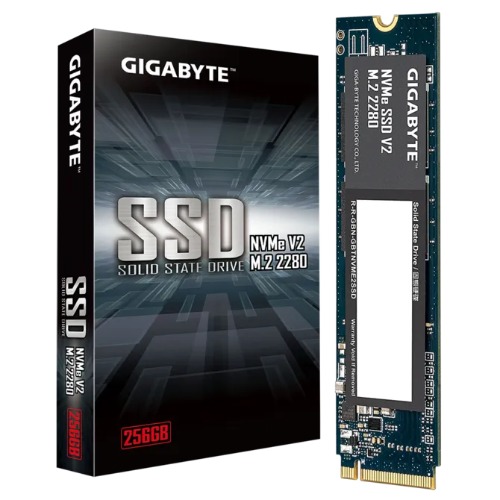

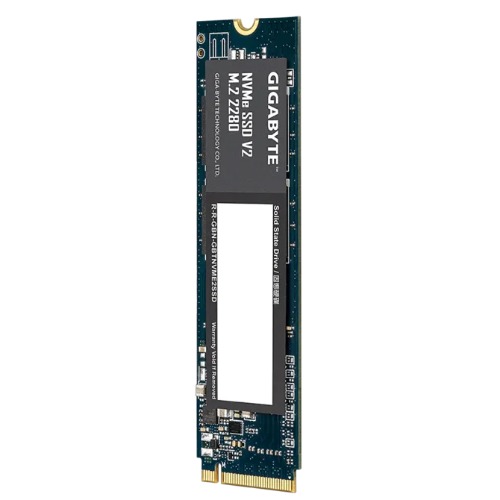

GIGABYTE G3NVMEV2256G M.2 256GB

Interface
•PCI Express 4.0x4, NVMe 1.4
Form Factor
•M.2 2280
Total Capacity
•500GB
External DDR Cache
•N/A
Sequential Read speed
•Up to 3600 MB/s
Sequential Write speed
•Up to 3000 MB/s
Dimension
•22 x 2.3 x 80 mm
Mean time between failure (MTBF)
•1.5 million hours
Max. Operating Power
•Read: 4300mW
•Write:4400mW
Power Consumption (Idle, PS3)
•40mW
Power Consumption(PS4, L1.2)
•5mW
Temperature (Operating)
•0°C to 70°C
Temperature (Storage)
•-40°C to 85°C

Warranty
1. Limited 3 years or 300TBW.
2. Limited warranty based on 3 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the ""Percentage Used"" (SMART ID: 05) in SMART page of ""GIGABYTE SSD toolbox"" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
