Cooler Master MasterBox MB311L ARGB Tempered Glass Micro-ATX Case - Motherboard Support: Mini ITX, Micro ATX - Expansion Slots: 4 - Drive Bays: 2x 2.5"/3.5" Drive Bay Combo, 2x 2.5" Drive Bay - I/O Panel: 2x USB 3.2 Gen1, 1x 3.5mm Audio, 1x 3.5mm Mic, 1x ARGB Controller - Fan Support: Top: 2x 120/140mm, Front: 3x 120mm/ 2x 140mm (2x 120mm ARGB Fans preinstalled), Rear: 1x 120mm - ATX PSU Support - MCB-B311L-KGNN-S02 - 2 Years Limited Warranty

2 Years Limited Warranty

GAMING ON WIDE-OPEN THROTTLE

The MasterBox MB311L ARGB is a Micro-ATX airflow PC case pre-installed with two ARGB fans and made to be built with the latest gaming hardware.  The front panel’s façade is made entirely of Fine Mesh, placed between two honeycomb vents on either side to maximize airflow. Since running the latest games, smoothly, means keeping the latest hardware efficiently cooled, top panel ventilation offers the option to add even more cooling hardware—if nothing is mounted, the top panel acts as passive ventilation.

The internal layout was engineered for a high compatibility for the latest gaming hardware while also accounting for future upgrades. Following in the principles of the award-winning MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB311L ARGB looks as good as it performs.





MASTERBOX
MB311L ARGB



GEAR UP, COOL OFF

Fine Mesh Front Panel
Mesh Intakes
Dual ARGB Fans
Optimised Airflow
Tempered Glass Side Panel
Adaptable Drive Cage
Versatile Cooling Options
Room For Upgrades



GAMING ON WIDE-OPEN THROTTLE

The MasterBox MB311L ARGB is a Micro-ATX airflow PC case pre-installed with two ARGB fans and made to be built with the latest gaming hardware. The front panel’s façade is made entirely of Fine Mesh, placed between two honeycomb vents on either side to maximise airflow. Since running the latest games, smoothly, means keeping the latest hardware efficiently cooled, top panel ventilation offers the option to add even more cooling hardware—if nothing is mounted, the top panel acts as passive ventilation.

The internal layout was engineered for a high compatibility for the latest gaming hardware while also accounting for future upgrades. Following in the principles of the award-winning MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB311L ARGB looks as good as it performs.

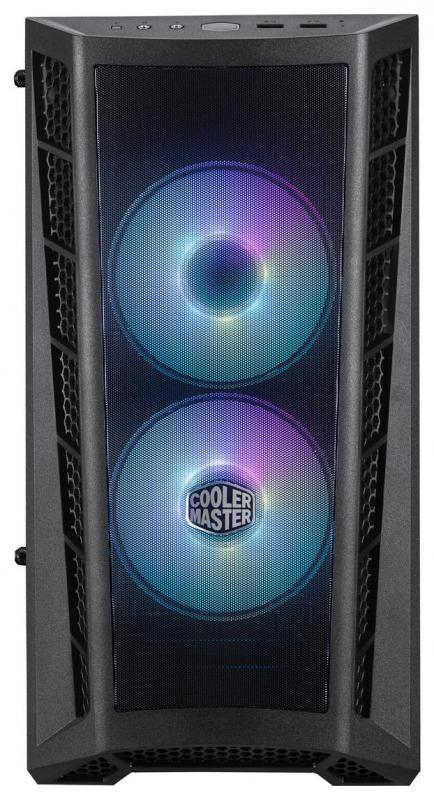

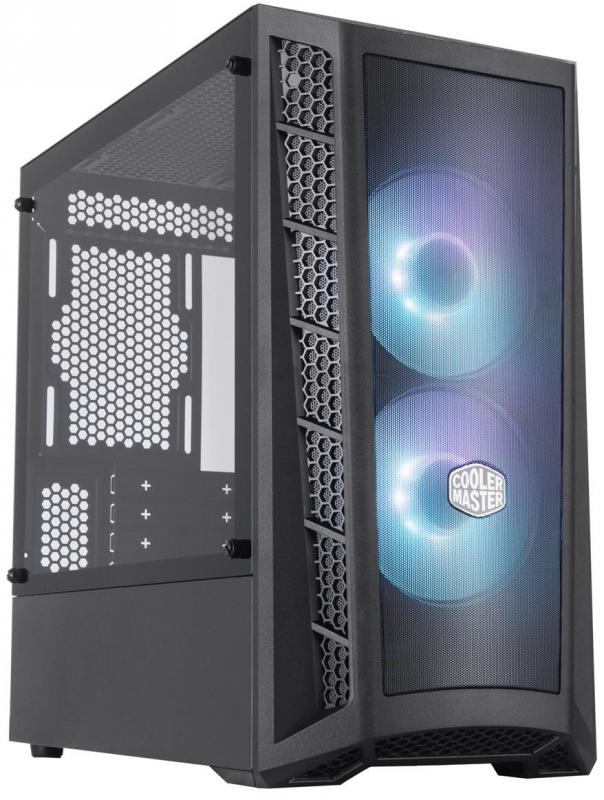

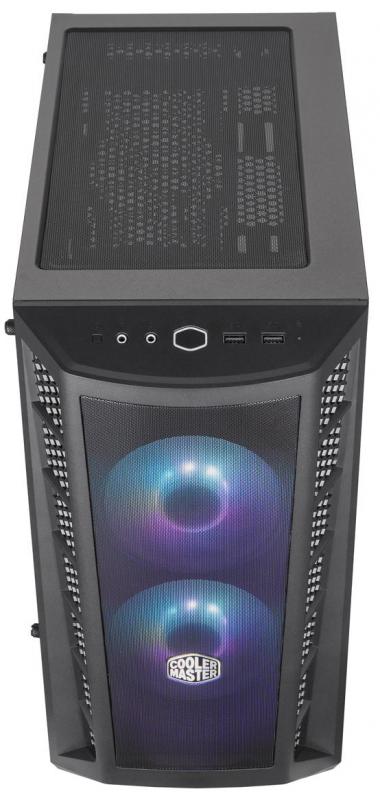

FINE MESH
FRONT PANEL



Cooler Master’s Fine Mesh design on the front panel is proven to provide proficient airflow while filtering out dust.



MESH INTAKES



Large, mesh intakes span each side of the front panel to provide additional airflow to the system.

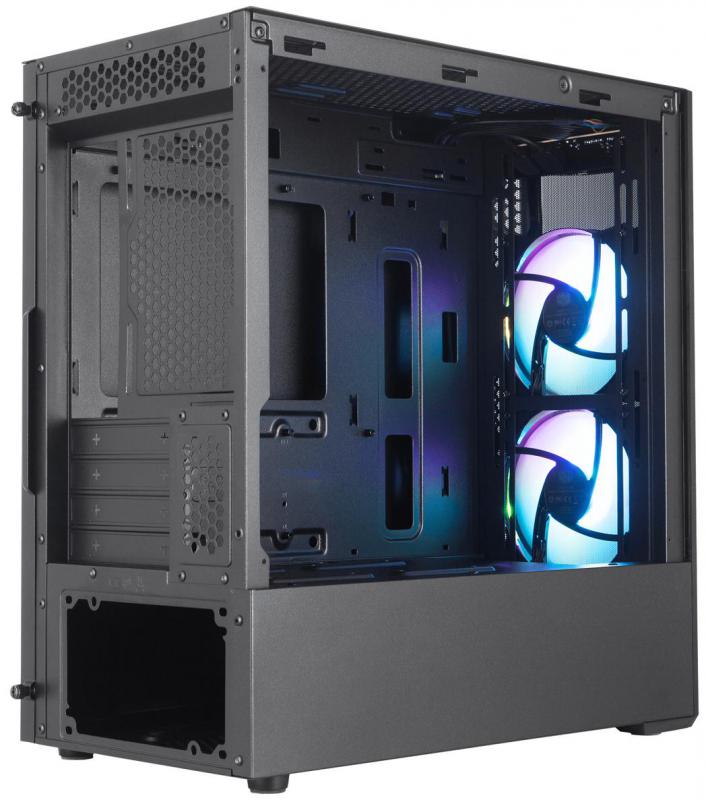

DUAL ARGB FANS

Two pre-installed 120mm ARGB fans can be managed by the motherboard, and connected by the included splitter, to create a comprehensive ARGB lighting system.

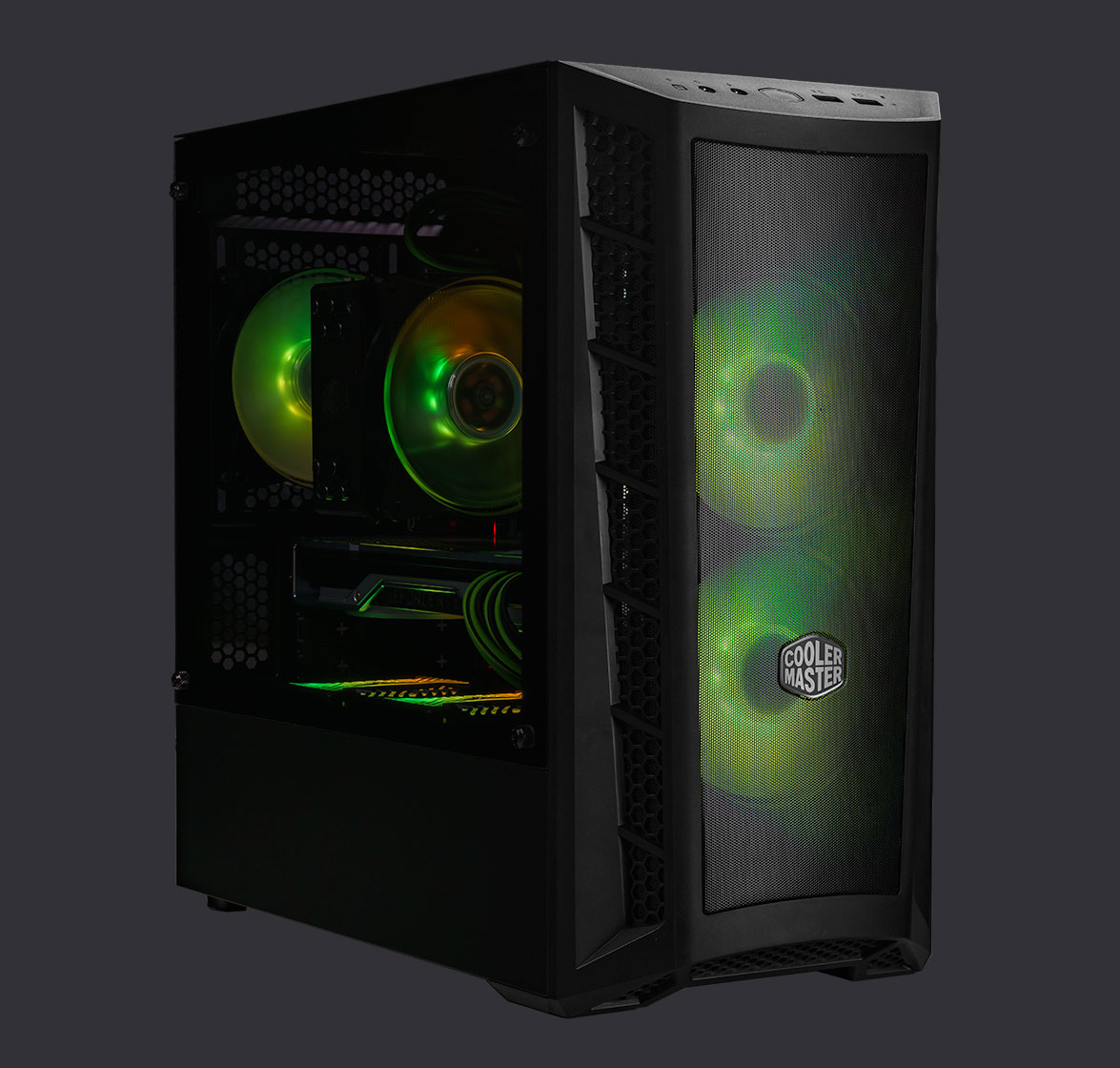

OPTIMISED AIRFLOW



Airflow is optimised by a collaboration between the Fine Mesh front panel, additional mesh intakes, top panel ventilation, and rear exhaust.

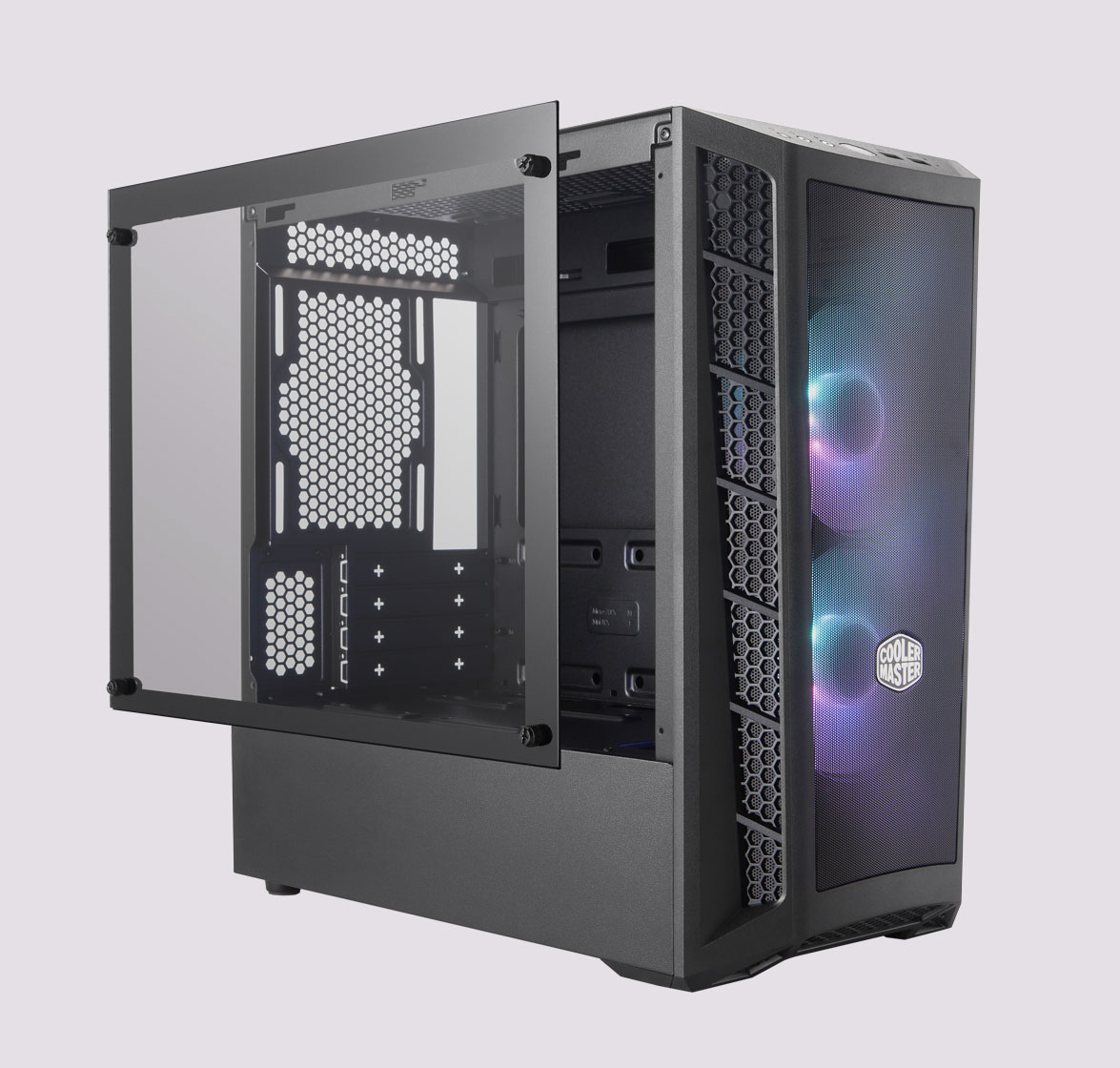

TEMPERED GLASS SIDE PANEL

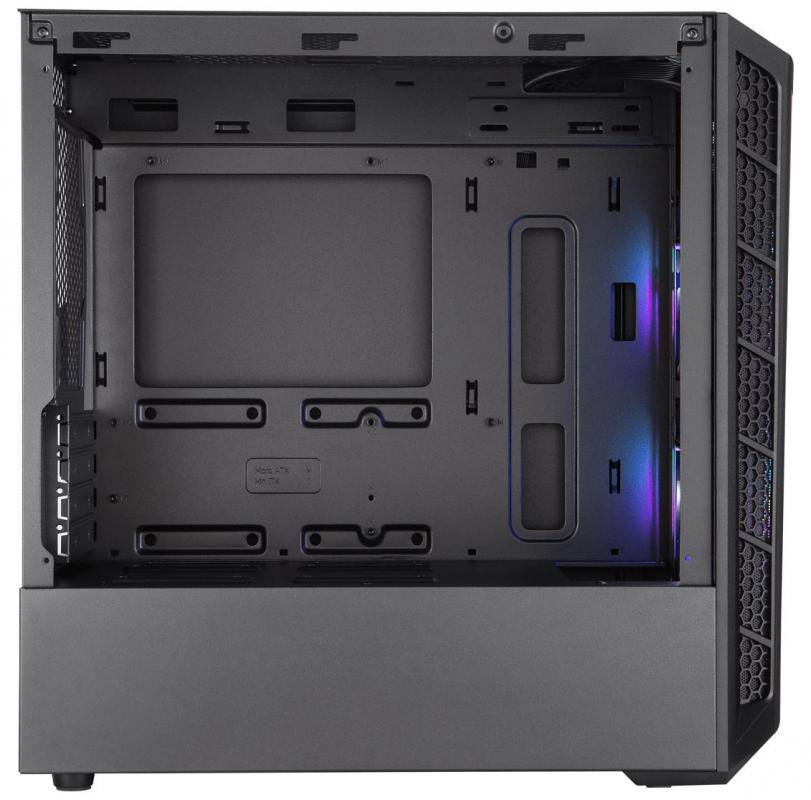

Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.





ADAPTABLE DRIVE CAGE





The drive cage is able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.







VERSATILE COOLING OPTIONS



Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.





ROOM FOR UPGRADES



Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.

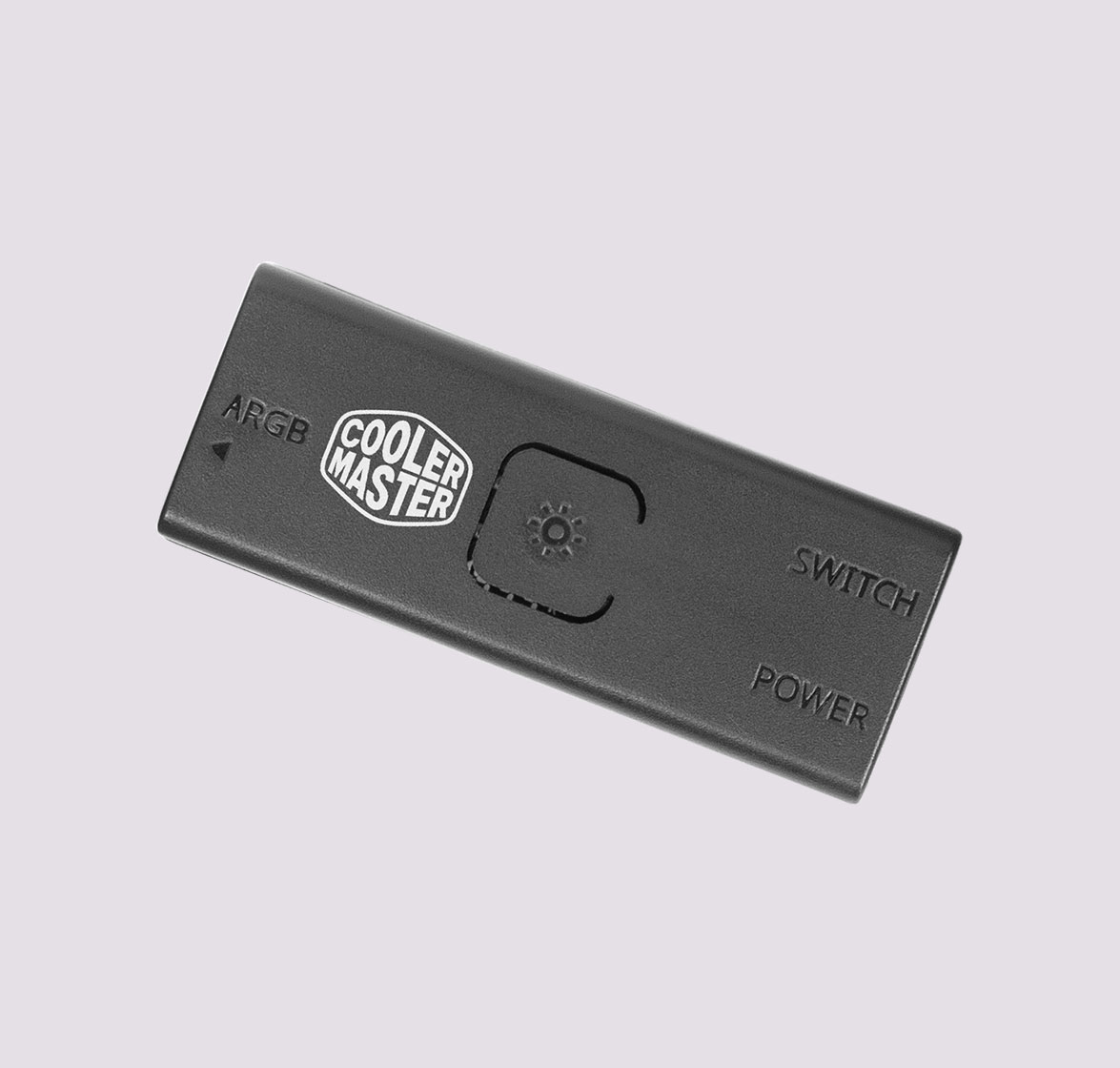

ARGB CONTROLLER​



​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.​

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.





Specifications



MODEL NUMBER

MCB-B311L-KGNN-S02



SERIES

MasterBox Series



SIZE

Mini Tower



AVAILABLE COLOUR(S)

Black



MATERIALS

Steel, Mesh, Plastic, Tempered Glass



DIMENSIONS (L X W X H)

435.5 x 217.5 x 410mm

WEIGHT

5.47kg



MOTHERBOARD SUPPORT

Micro ATX, Mini ITX



EXPANSION SLOTS

4

5.25" DRIVE BAYS

N/A

2.5" / 3.5" DRIVE BAYS (COMBO)

2

2.5" DRIVE BAYS

2



I/O PANEL

2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB 2-to-3 splitter, 1x ARGB Controller





PRE-INSTALLED FANS - FRONT

2x 120mm ARGB Fan





FAN SUPPORT - TOP

2x 120/140mm





FAN SUPPORT - FRONT

3x 120mm, 2x 140mm





FAN SUPPORT - REAR

1x 120mm



RADIATOR SUPPORT - TOP

120mm, 240mm



RADIATOR SUPPORT - FRONT

120mm, 140mm, 240mm, 280mm



RADIATOR SUPPORT - REAR

120mm



CLEARANCE - CPU COOLER

166mm / 6.54"



CLEARANCE - PSU

140mm (HDD cage in backmost position), 325mm (w/o front radiator & HDD cage)



CLEARANCE - GFX

344mm



CABLE ROUTING

18-22mm



DUST FILTERS

Top, Front, Bottom



POWER SUPPLY SUPPORT

Bottom mount, ATX



WARRANTY

2 years
