Cooler Master MPW-5001-ACBK-PAU ELITE NEX PN500 230V 500W ATX Power Supply

Name: Cooler Master MPW-5001-ACBK-PAU ELITE NEX PN500 230V 500W ATX Power Supply
Brand: COOLERMASTER
SKU: PCC2626
Price: 85 AUD
Availability: InStock

Available

In stock at Warrawong

In Store

Processing Time (after payment approval) : 1-2 business days

SKU: PCC2626
Manufacturing Code: MPW-5001-ACBK-PAU
Categories: POWER SUPPLIES

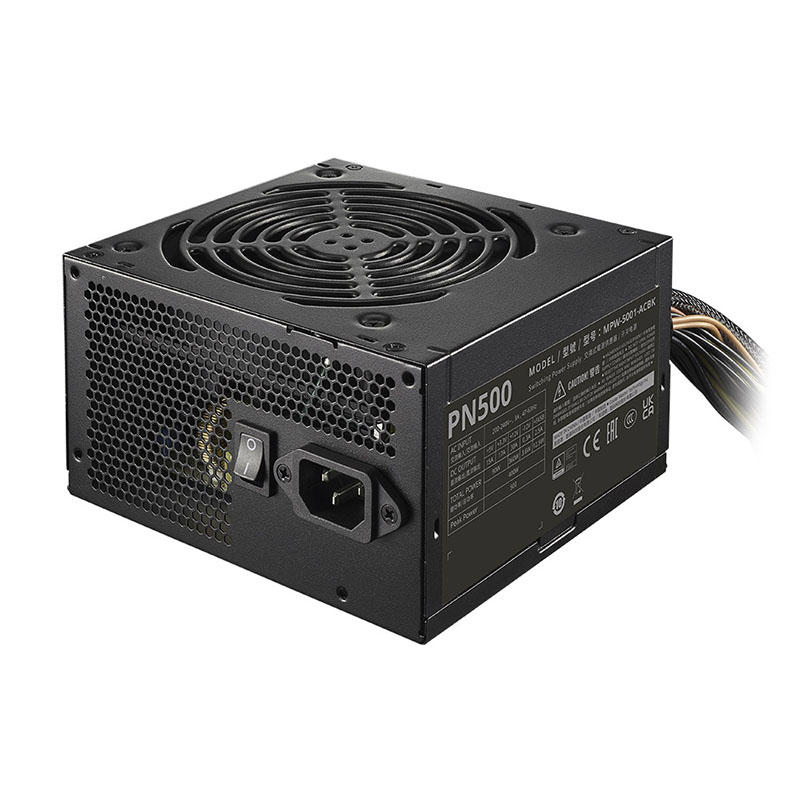

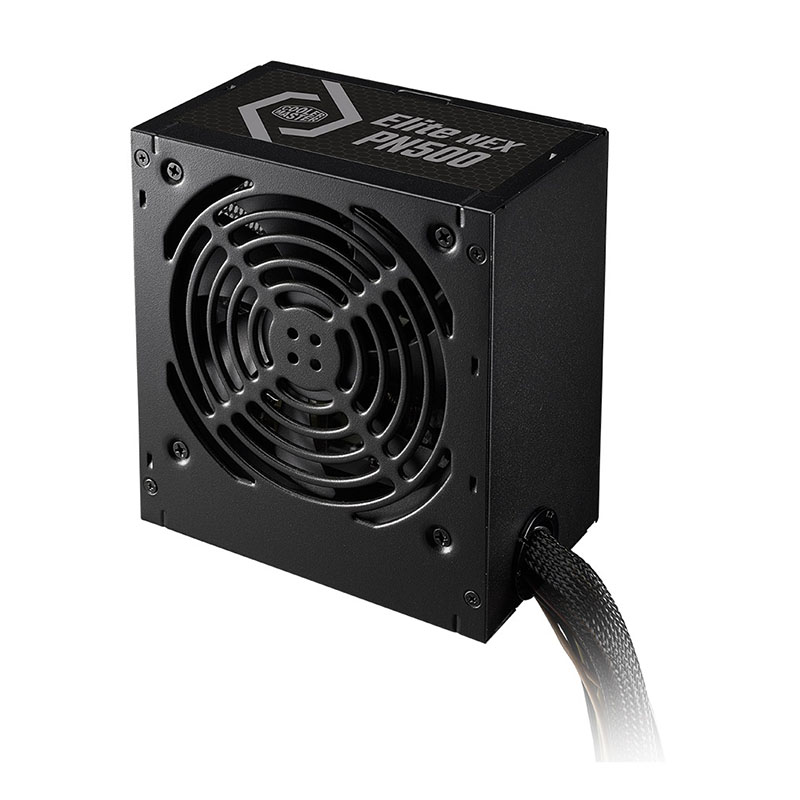

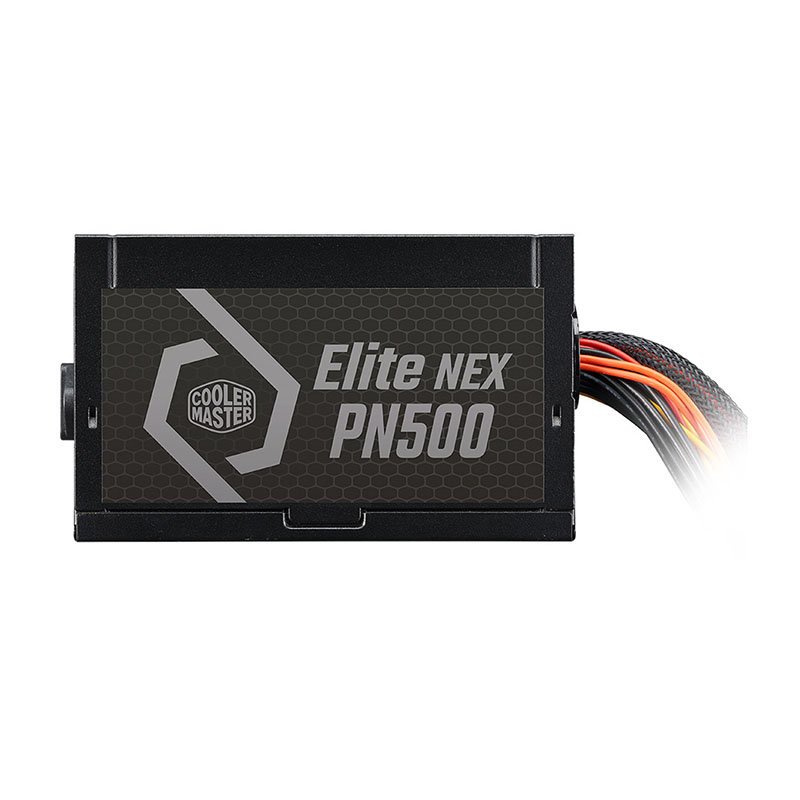

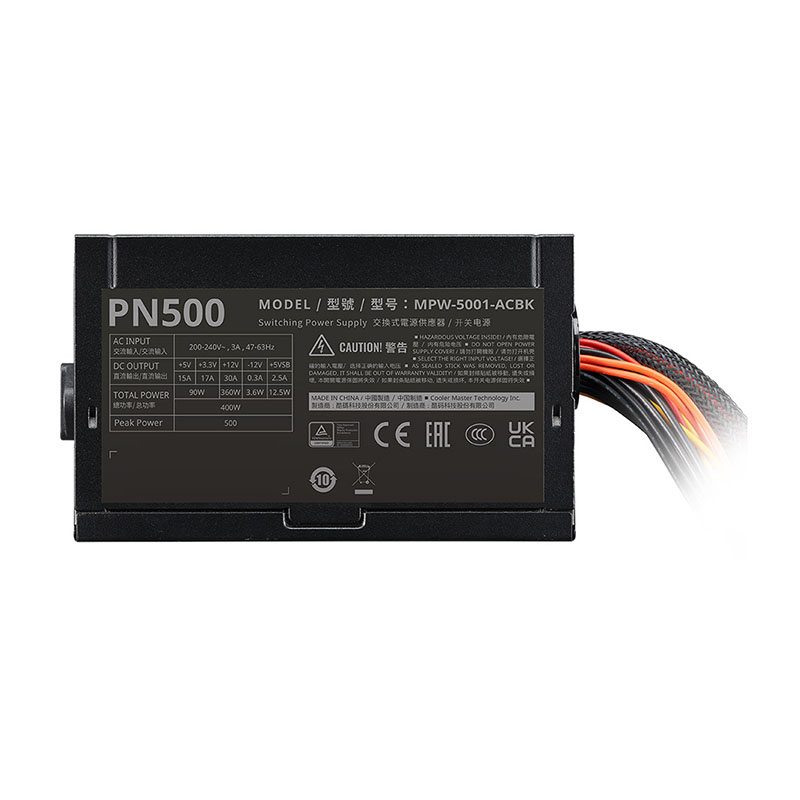

Cooler Master ELITE NEX PN500 230V 500W Power Supply, Non-Modular, 120mm Silent Sleeve Fan, 1x EPS, 4x SATA, 1x PCI-E, 2x Molex, Active PFC + Dual Forward Topology Design, 500W Peak Power

ELITE NEX 500 230V PEAK

NEX LEVEL POWER

Active PFC and a dual forward topology design
Excellent temperature resistance
High peak power tolerance
Durability, reliability, and safety
75% efficiency
3-year warranty

NEX LEVEL POWER

The ELITE NEX White is the dependable choice for entry level builders looking for a strong, reliable PSU.

ACTIVE POWER FACTOR CORRECTION AND A DUAL FORWARD TOPOLOGY DESIGN

Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

EXCELLENT TEMPERATURE RESISTANCE

Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments

HIGH PEAK POWER TOLERANCE

Can reliably push an additional 100W at peak power loads for up to 20 seconds.

75% EFFICIENCY AND DURABLE RELIABILITY

Maintains 75% efficiency at typical loads and maintains consistent performance in any environment, whether you live at high altitudes or in high humidity.

SPECIFICATION

Model

MPW-5001-ACBK-PAU

ATX Version

ATX 12V Ver. 2.41

PFC

Active PFC

Input Voltage

200 - 240V

Input Current

Input Frequency

50 - 60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

Sleeve Fan

Efficiency

≥ 75% @ Typical Load

ErP 2014 Lot 3

Yes

Operating Temperature

0 - 40°C

Power Good Signal

100 - 500 ms

Hold Up Time

≥10ms at 100% load

MTBF

>100,000 Hours

Protections

OVP, OPP, SCP, UVP, OTP, Inrush Protection

Regulatory

TUV, CE, CCC, EAC, UKCA

ATX 24 Pin Connectors

EPS 4+4 Pin Connectors

SATA Connectors

Peripheral 4 Pin Connectors

PCI-e 6+2 Pin Connectors

Series

Elite Series

80 Plus

None 80 PLUS

Modular

Non Modular

Wattage

500

Power Supplies

Power Supplies Size ATX/PS2
Modularity Non-Modular
Wattage 500W
Energy Efficiency None
