Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE6500 ultimate BE performance : 688+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

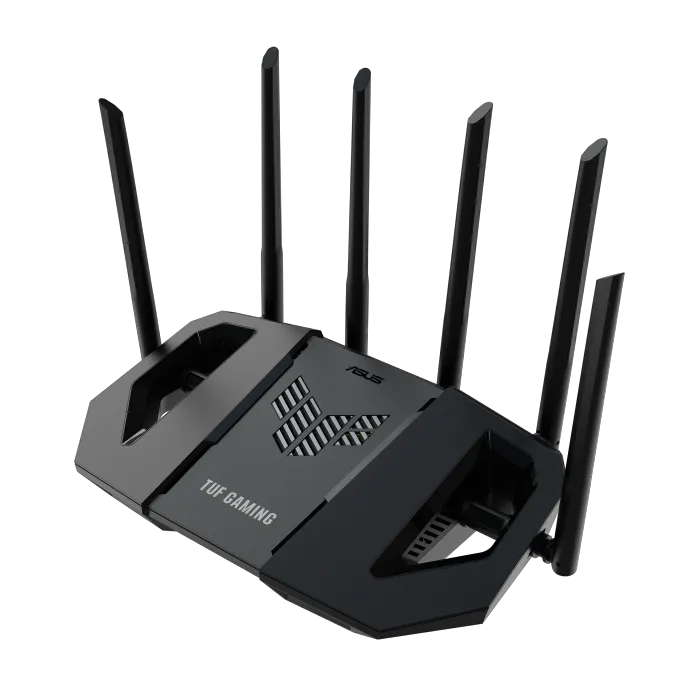

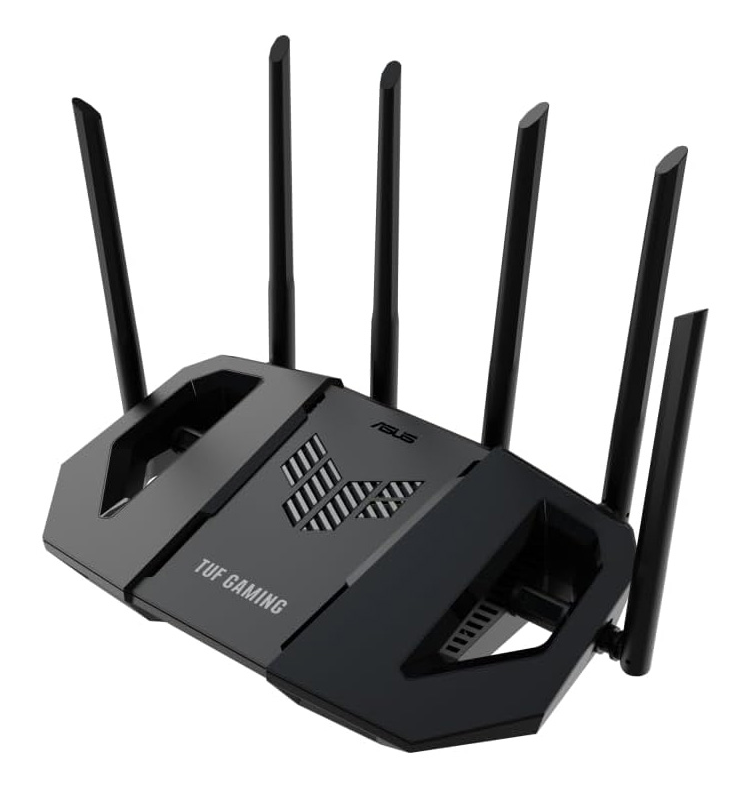

Antenna
External fixed antenna x 6
Transmit / Receive
2.4 GHz 2x2
5 GHz 4x4
Processor
1.5GHz Quad-core Processor
Memory
256 MB Flash and 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

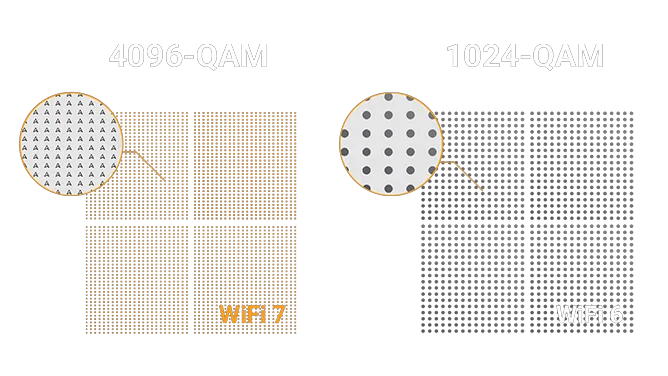

4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

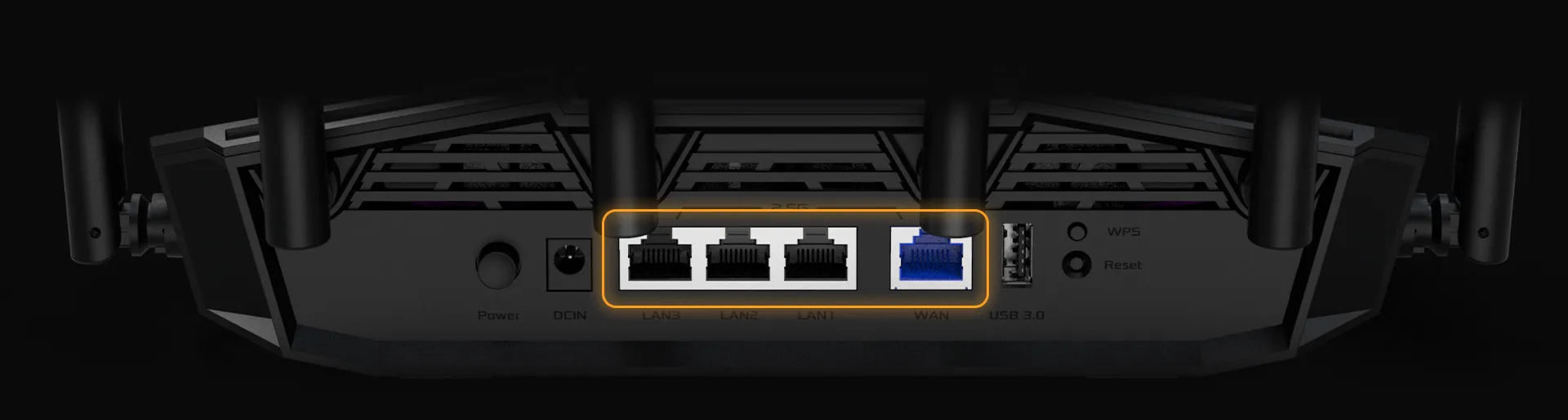

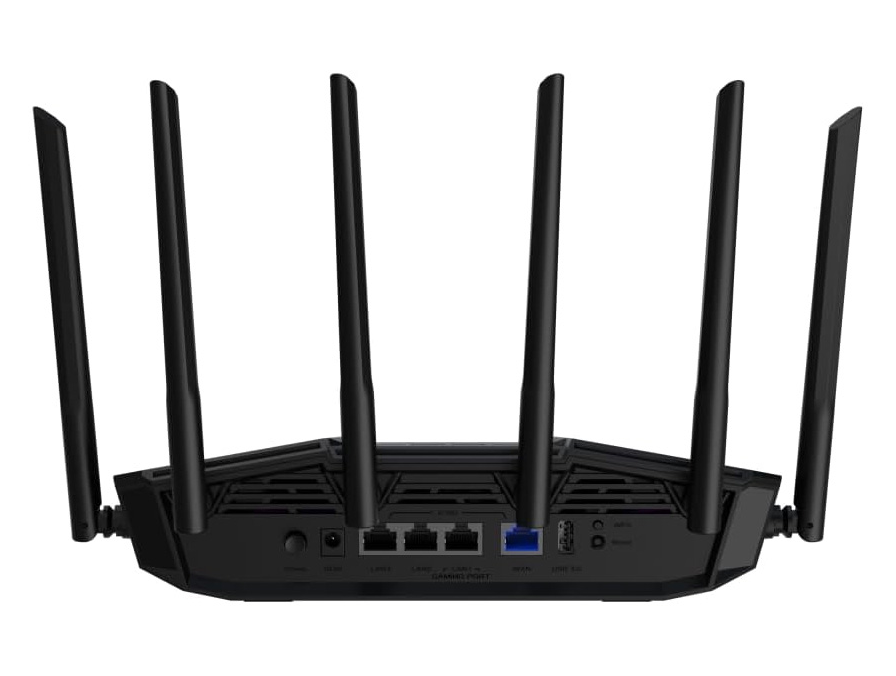

I/O Ports
1 x 2.5GbE for WAN
3 x 2.5GbE for LAN
1 x USB 3.2 Gen1
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
WAN(Internet) x1
LAN x1
5GHz x 1
2.4GHz x1
Power x1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current
Package Content

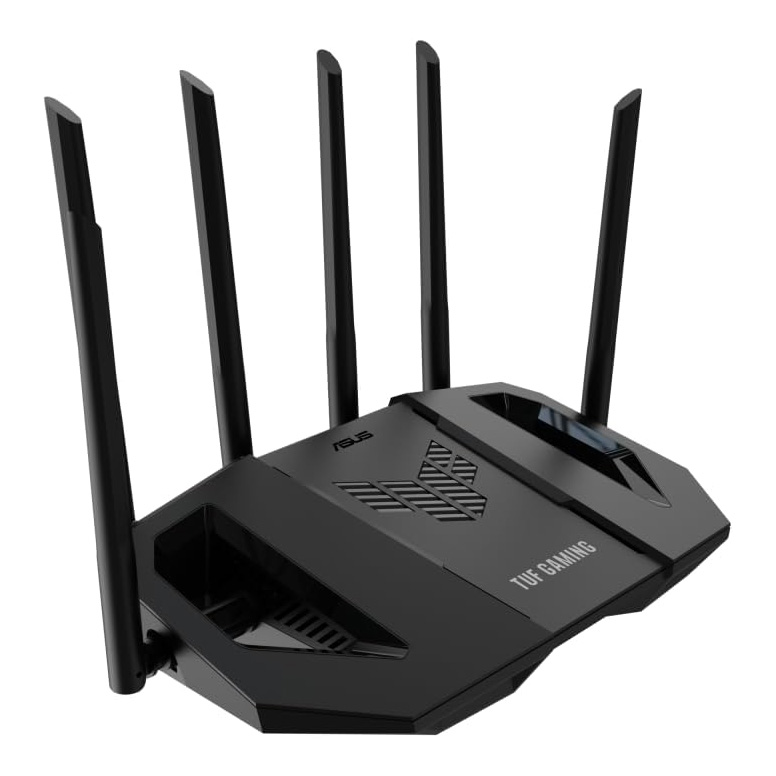

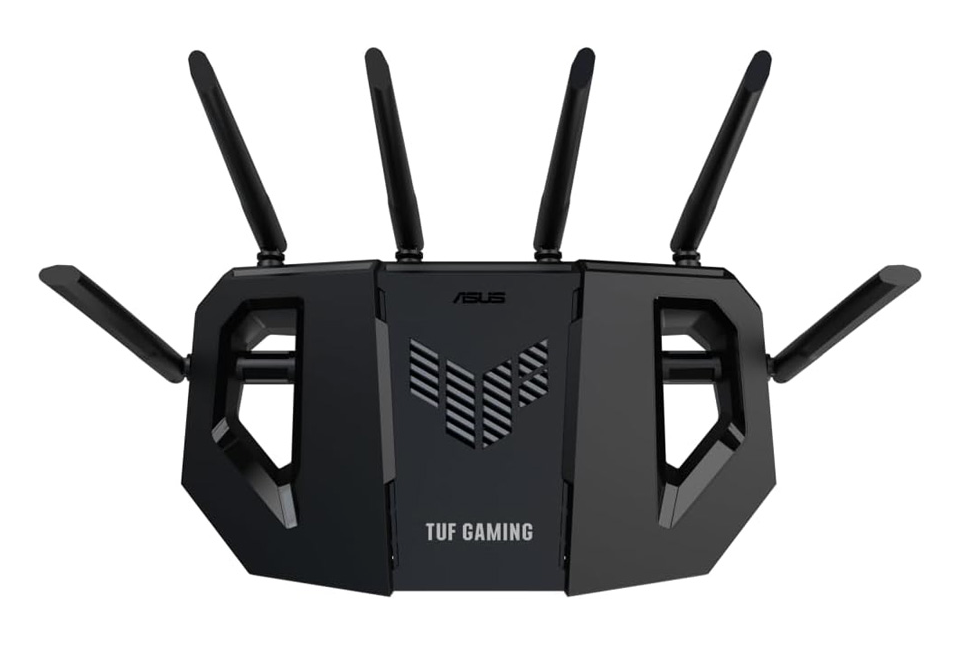

TUF-BE6500 dual-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Dimensions
304 x 174 x 214 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customised Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

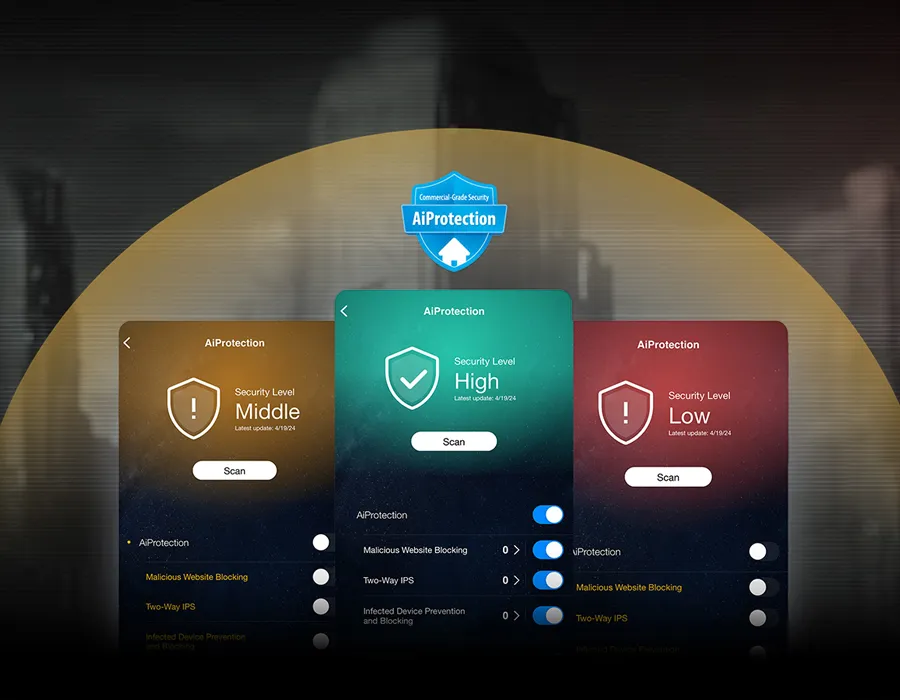

AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Support Nord VPN
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN
DHCP Server
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
USB application
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
• FAT32
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
