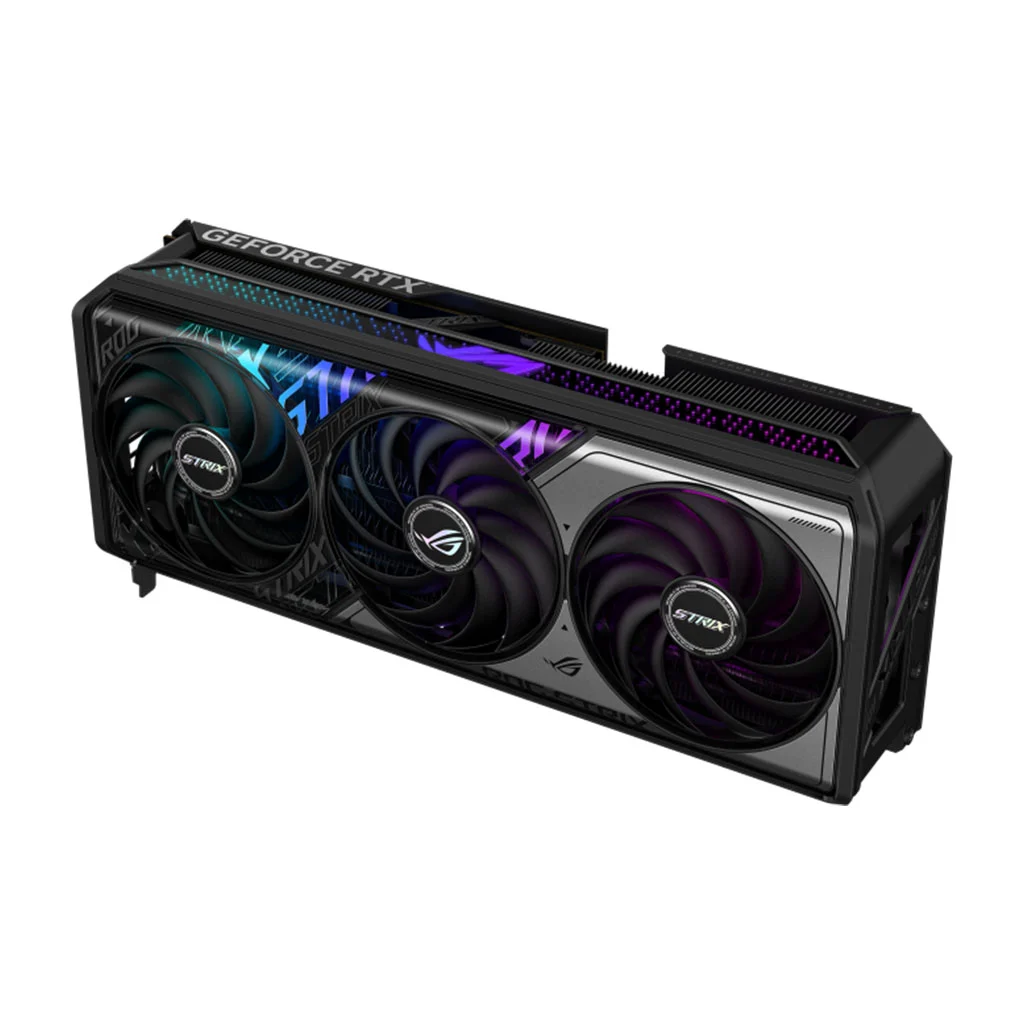

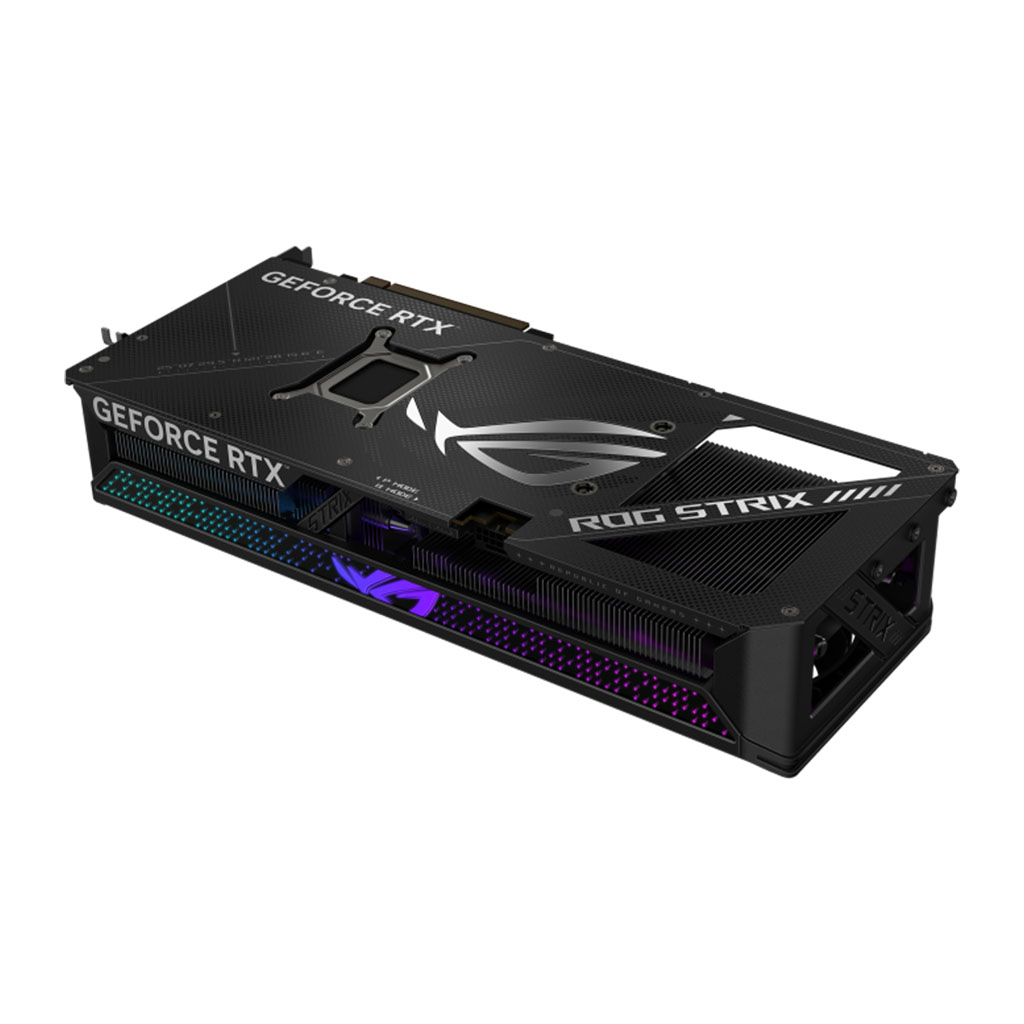

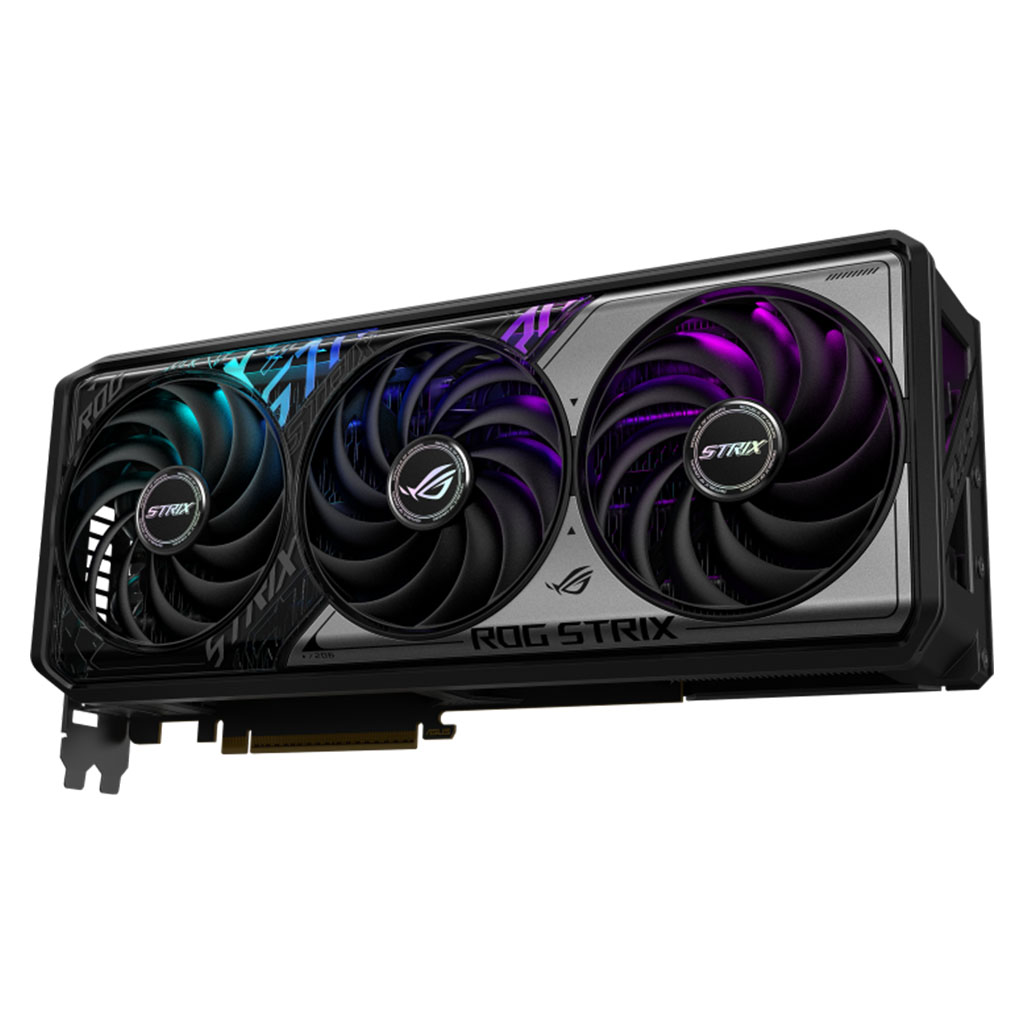

ASUS ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Video Card

The ASUS ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition is a high-end gaming GPU built for 4K gaming and AI-powered performance. Featuring 16GB of ultra-fast GDDR7 memory, Ray Tracing & DLSS 3.5 support, and an advanced cooling system with Axial-tech fans, it ensures smooth gameplay and efficient heat management. With factory overclocking (OC Edition) and premium build quality

ROG Strix GeForce RTX™ 5070 Ti 16GB GDDR7 OC Edition

_{The ROG Strix GeForce RTX™ 5070 Ti OC Edition 16GB GDDR7 with advanced cooling system provides you premium power delivery.}

• AI Performance: 1492 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• OC mode: 2625 MHz (OC mode)/ 2602 MHz (Default mode)
• 3.275-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance.
• 0dB technology lets you enjoy light gaming in relative silence
• MaxContact design with vapor chamber ensures efficient heat transfer, providing a premium performance
• Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
• Premium power delivery with digital power control and 15K caps ensure high performance.
• Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
• Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring







Model



ROG Strix GeForce RTX™ 5070 Ti 16GB GDDR7 OC Edition





Graphic Engine

NVIDIA^® GeForce RTX™ 5070 Ti

AI Performance

1492 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL^®4.6

Video Memory

16GB GDDR7

Engine Clock

OC mode: 2625MHz
Default mode: 2602MHz (Boost Clock)

CUDA Core

8960

Memory Speed

28 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG PCB Ruler
1 x Thank You Card
1 x Power Cable (1 to 3)

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

332 x 147.3 x 64 mm
13.07 x 5.79 x 2.519 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

3.2 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
