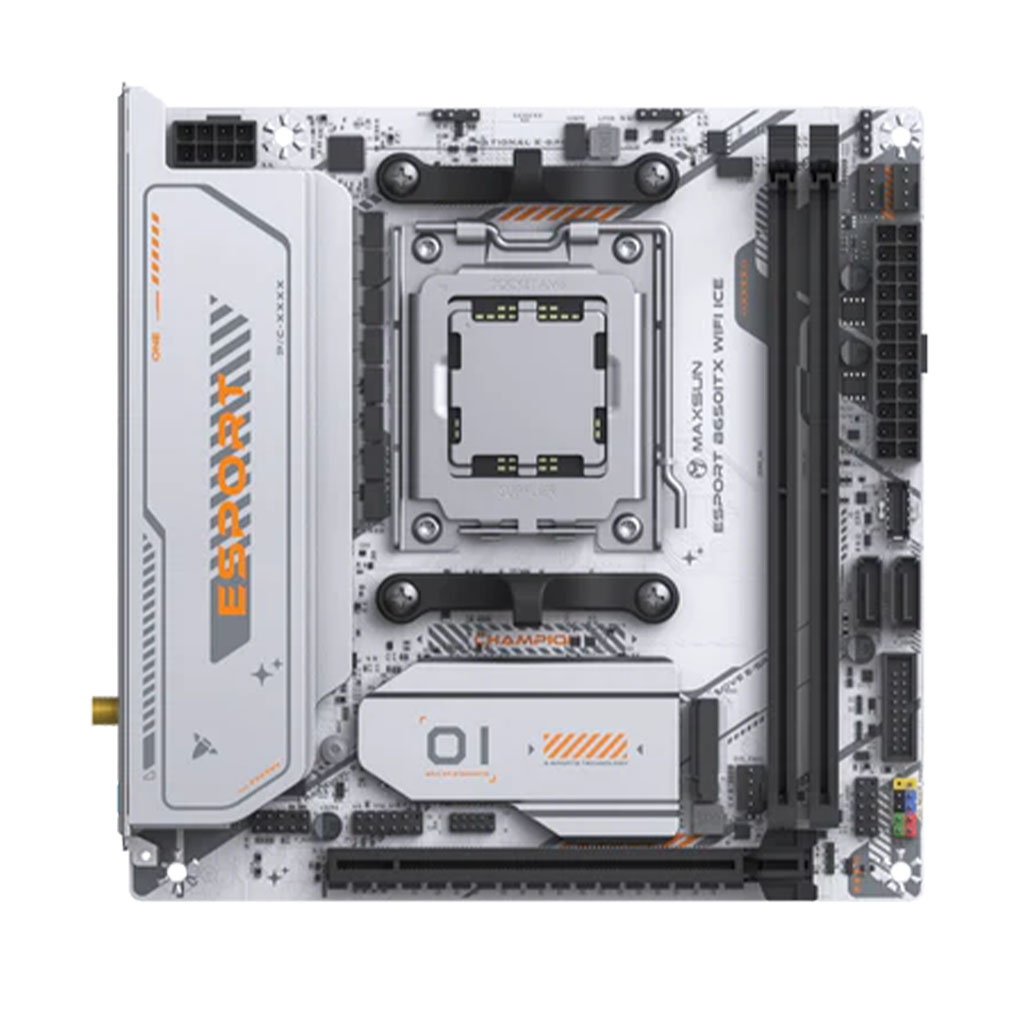

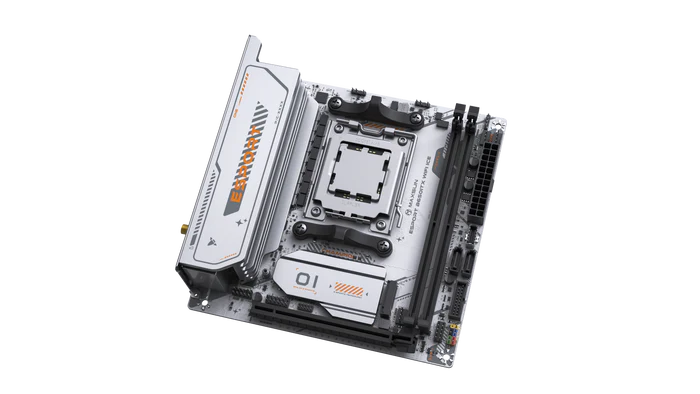

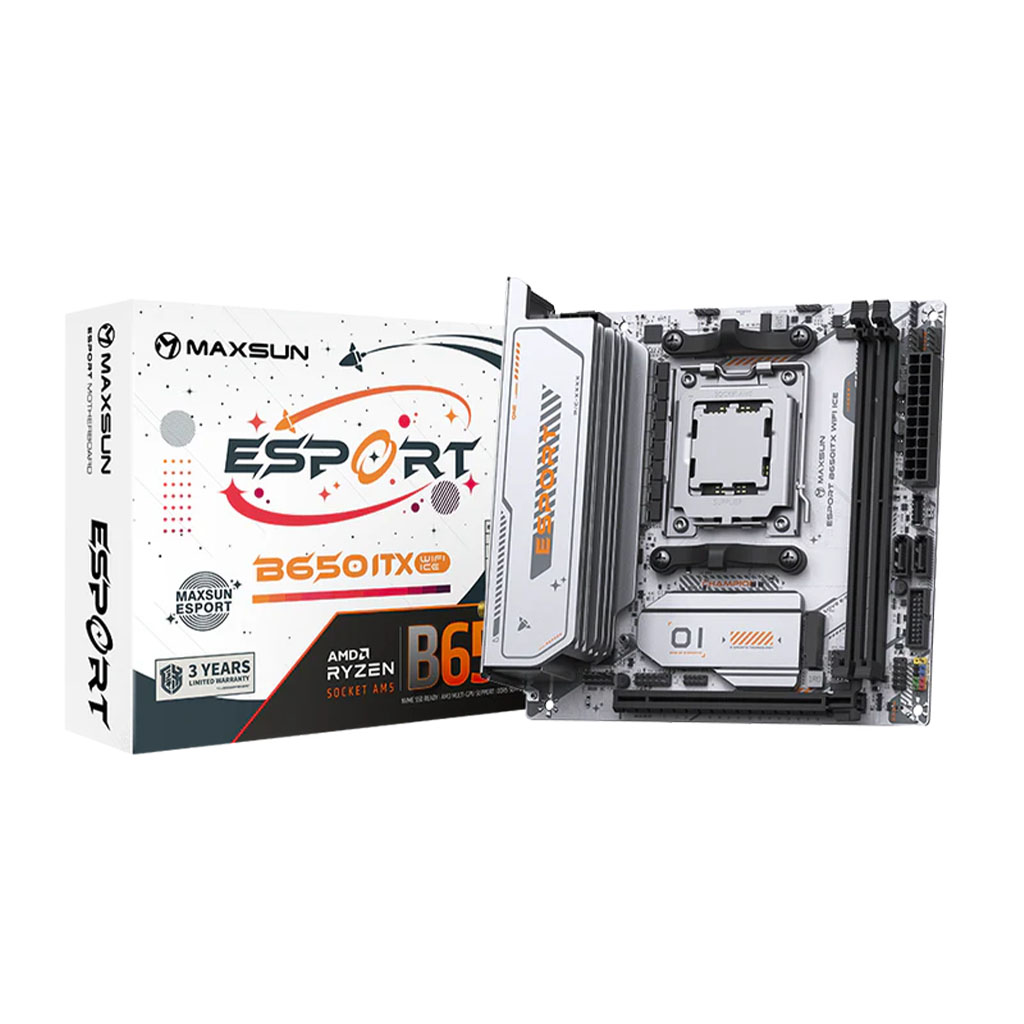

MaxSun eSport B650ITX WIFI ICE AMD AM5 ITX Motherboard DDR5

Name: MaxSun eSport B650ITX WIFI ICE AMD AM5 ITX Motherboard DDR5
Brand: MAXSUN
SKU: MS-eSport B650ITX WIFI ICE
Price: 252 AUD
Availability: InStock

Available

In Stock at Warehouse

Processing Time (after payment approval) : 1-2 Business Days

Apply coupon pccstore to save further $10 T&Cs apply

SKU: MS-eSport B650ITX WIFI ICE
Manufacturing Code: MS-eSport B650ITX WIFI ICE
Categories: MOTHERBOARD

Stock Availability

Wollongong	Out of stock
Dapto	Out of stock
Warrawong	Out of stock
Warehouse	Instock

E-sport B650 ITX/AMD AM5/2x DDR5/1x M.2

Compact ITX Build: 170 x 170 mm, ideal for small yet powerful setups.
AM5 Ready: Supports Ryzen 7000/8000/9000 CPUs, TDP 105-180W.
DDR5 Performance: Dual slots, up to 96GB, overclocking to 8000 MHz.
Next-Gen Expansion: PCIe 5.0 x16 slot and dual PCIe 4.0 M.2.
Seamless Connectivity: WiFi 6, Bluetooth 5.2, and 2.5G LAN.
Flexible USB Options: USB 3.2, USB 2.0, and 10G Type-C.
Enhanced Visuals: HDMI 4K @ 30Hz, DP 4K @ 60Hz.
Built to Perform: RGB lighting, robust cooling, and safety features.

Overview

Specifications

Audio	Integrated Realtek ALC897 audio chip
Chipset	AMD® B650 high-speed chipset
Form Factor	ITX (170 x 170 mm)

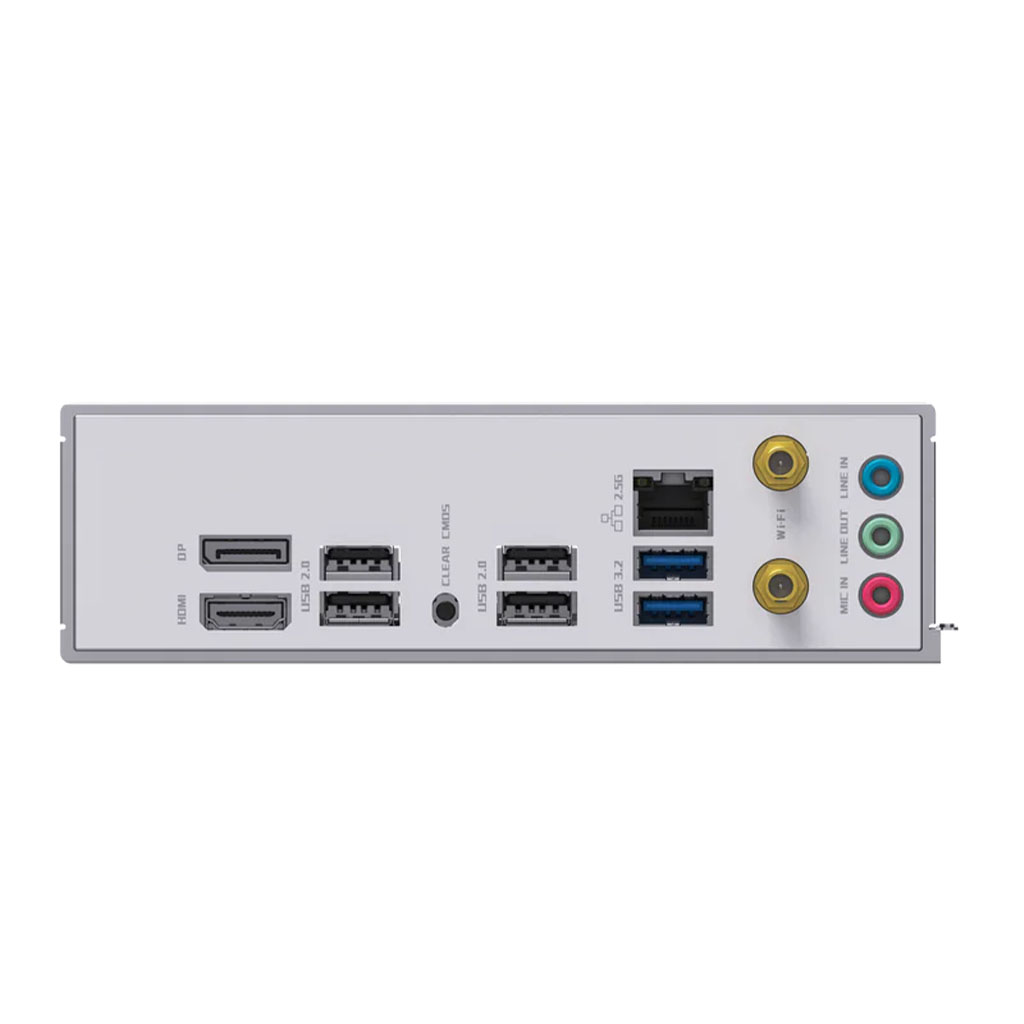

I/O Connectors	Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0
Integrated CPU Graphics	1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz), 1 x DisplayPort (up to 4096 x 2160 @ 60Hz)
LAN	Integrated Realtek 8125BG/D LAN chip
PCI Slots	1 x PCIe 5.0 x16 slot
Processor Support	AM5, compatible with Ryzen 7000/8000/9000 series processors
RAM Type/Bus/Max	2 DIMM DDR5 slots, supporting up to 96GB; Dual-channel support; Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz
Socket	AM5, TDP: 105-180W
Storage Interface	2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs), 2 x SATA 3.0 ports
Warranty	3 Years
Wireless & Bluetooth	Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2, 1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi
