MWE Gold 850 V3, ATX 3.1
Quiet HDB fan
80 Plus Gold efficiency certification
High temperature resilience
Embossed cable
ATX 3.1 support
5-year warranty
Shipping and Pickup Options: Most Items Shipped Out the Same Day! Extensive Range of Parts and Accessories. Trust Our Gaming Specialists to Build It for You! Premier IT Gear Store with Super-Fast Shipping.
Our Shops :
Seen it cheaper? Ask for a PCC Deal! Live chat or call 02 4231 4570

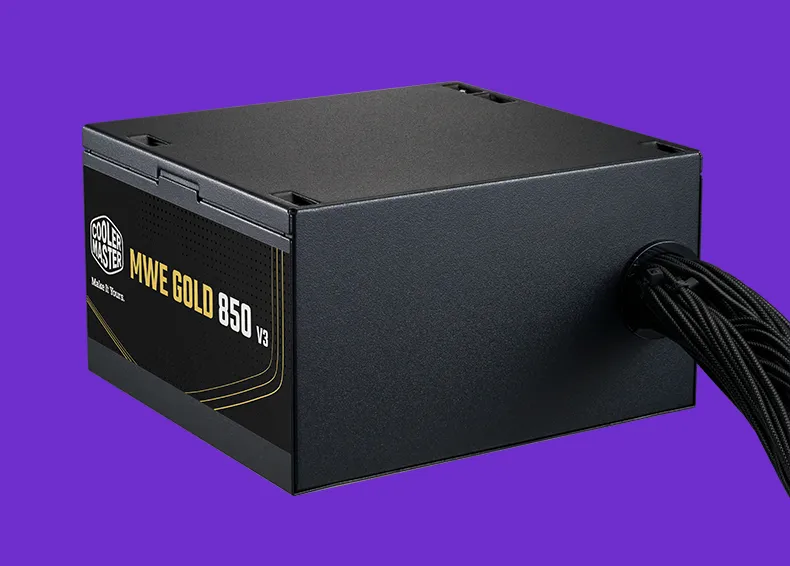

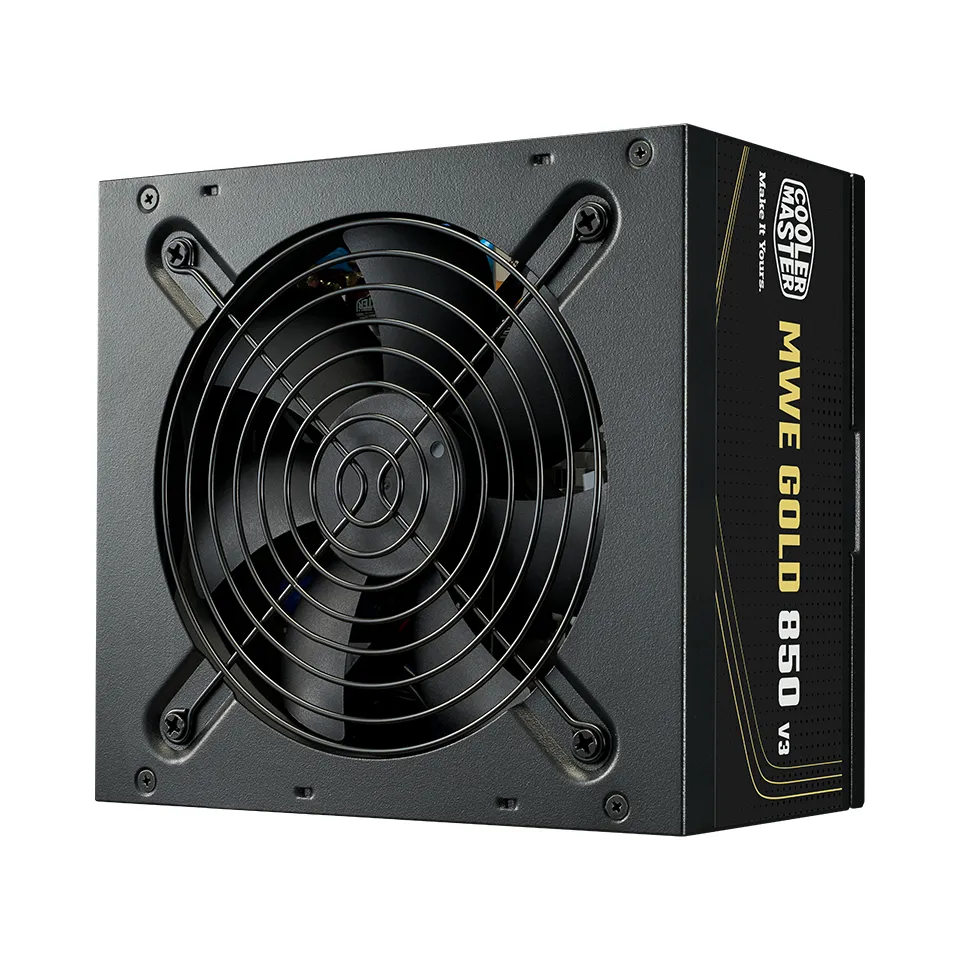

Cooler Master MWE Gold V3 850W Power Supply MPE-8506-ACAG-BAU
In stock at Wollongong
In stock at Dapto
In stock at Warrawong
In Store
- PCC3433
- MPE-8506-ACAG-BAU
- POWER SUPPLIES
Cooler Master MWE Gold V3 850W Power Supply, 80PLUS Gold, Non-Modular, 1x EPS 4+4 Pin, 1x EPS 8 Pin, 4x PCI-E, 6x SATA, 2x Molex, ATX 3.1, 120mm LDB Fan
Product Features
Evolutionary Power Supply
Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions.
80 Plus Gold efficiency certification
The MWE Gold V3 is certified to achieve more than 90% efficiency at typical loads in a 115V test.

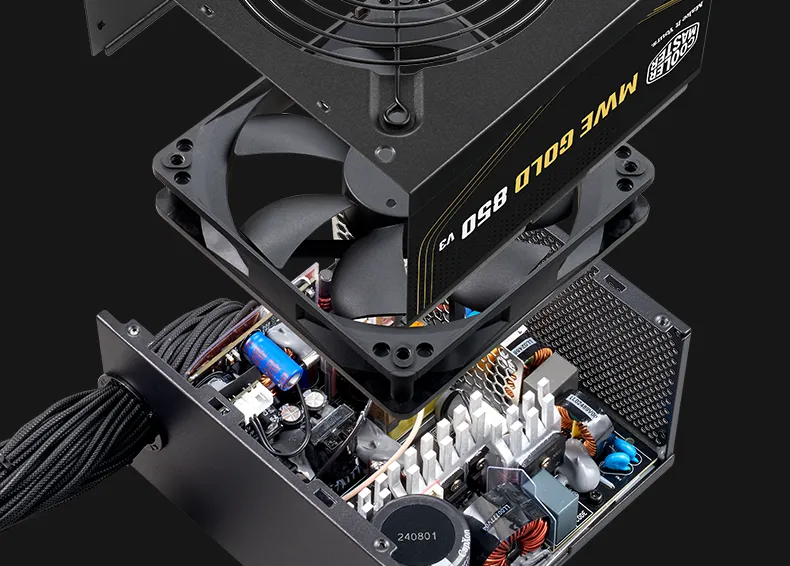

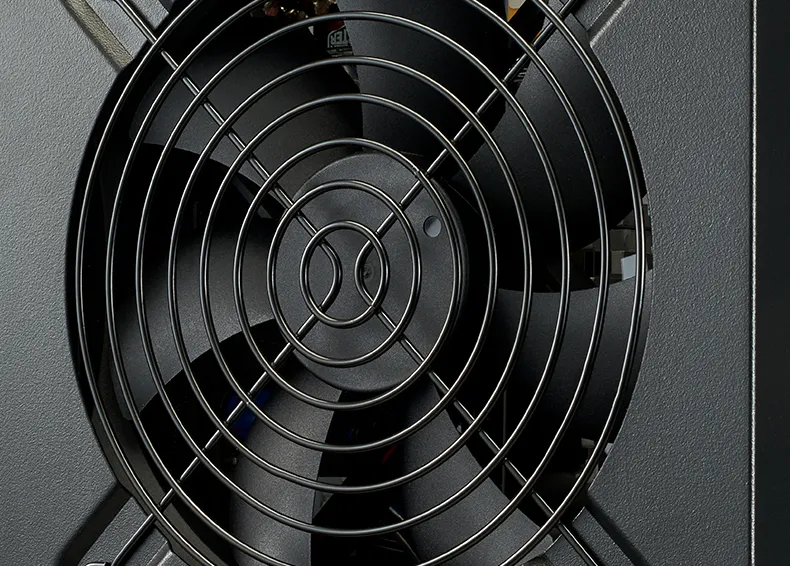

Quiet HDB fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Single +12V rail
All power comes from a single +12V source, ensuring consistent output through all connected cables.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
5-year warranty
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Product Specs
Specifications
Product Number
MPE-8506-ACAG-BAU
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
100 - 240V
Input Current
10 - 6 A
Input Frequency
50 - 60Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120 mm
Fan Bearing
HDB
Fan Speed
2400 RPM
Efficiency
≥ 90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0 - 40°C
Power Good Signal
100 - 150 ms
Hold Up Time
≥16ms at 80% Load
MTBF
>100,000 hours
Protections
UVP / OVP / OPP / OTP / SCP / OCP
Regulatory
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)

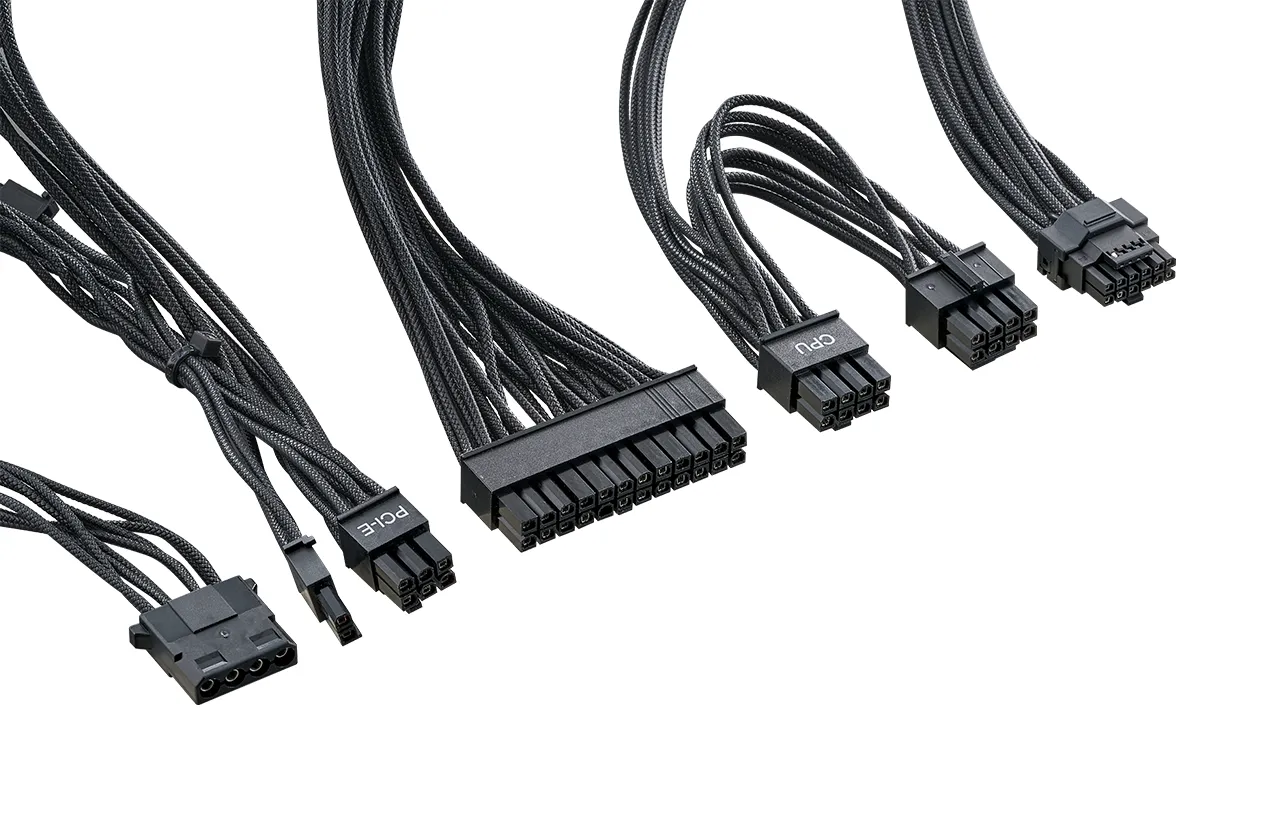

ATX 24 Pin Connectors
x1 = 1x (550mm)
EPS 8 Pin / 4+4 Pin Connectors
x2 = 1x (550+120mm)
PCl-e 6+2 Pin
x4 = 2x (550+120mm)
SATA Connectors
x6 = 2x (400+150+150mm)
Peripheral 4 Pin Connectors
x3 = 1x (400+150+150mm)
12V-2x6 (12+4 Pin) Connectors
x1 = 1x (600mm)
Watts
850W
Series
MWE Gold V3
Power Supplies
- ATX/PS2
- Non-Modular
- 850W
- 80 PLUS Gold
