Cooler Master MF600-KGNN-S00 MasterFrame 600 Black ATX Case, NO PSU
In Stock at Warehouse
- PCC3553
- MF600-KGNN-S00
- CASES AND ACCESSORIES
Cooler Master MasterFrame 600 Black ATX Case, NO PSU
1 Year Warranty
Product Features
MasterFrame 600
The MasterFrame 600 is the flagship ATX case of the series, measuring 544 x 531 x 261 mm. It offers a versatile, spacious design that supports standard ATX motherboards, with plenty of room for expansion, cooling, and efficient cable management.

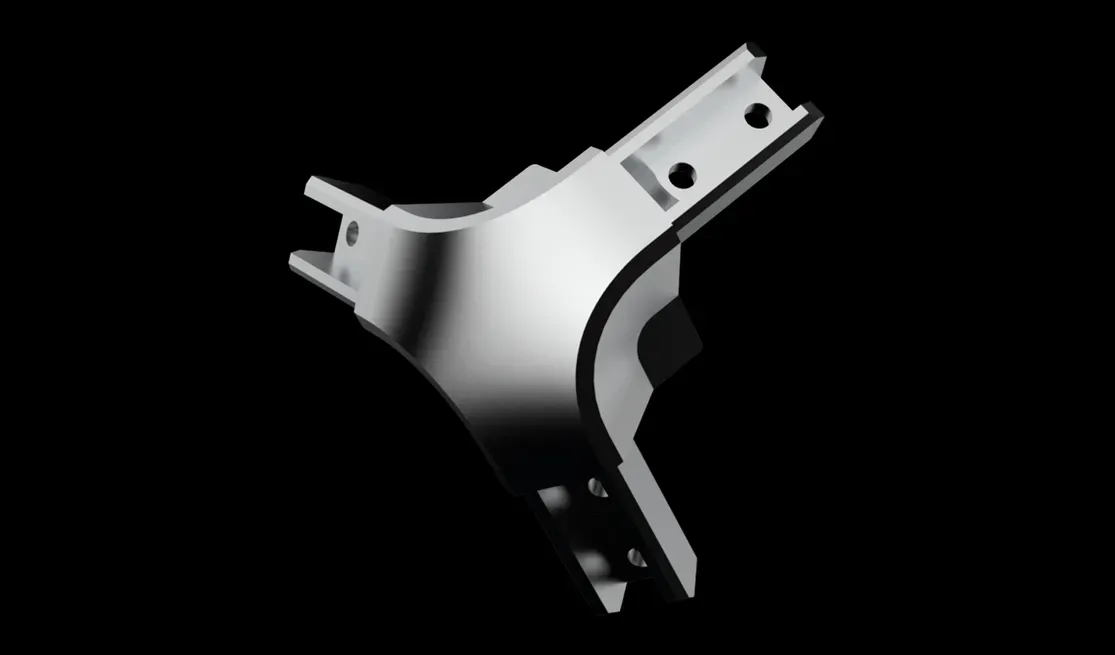

DYNAMIC FRAME
Modular & Future Proof
Supports modular configurations from the factory, allowing flexible hardware adaptability and providing the best upgrade potential for customisation and system expansion.
VERSATILE & MAKER-DRIVEN
Personalised customisation
Interchangeable panels offer endless personalisation possibilities, transforming your chassis into a unique expression of style and functionality.

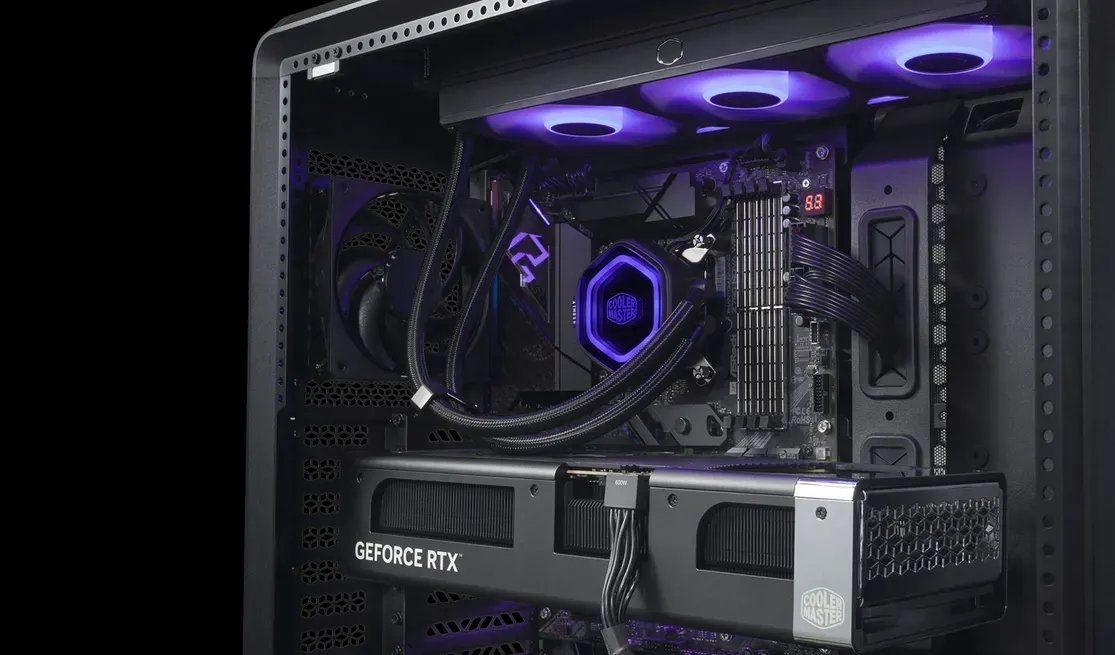

LATEST-GEN GPU READY
Fully compatible with next-gen GPUs
The spacious interior supports the latest high-performance graphics cards, ensuring seamless upgrades for gaming and creative workloads.

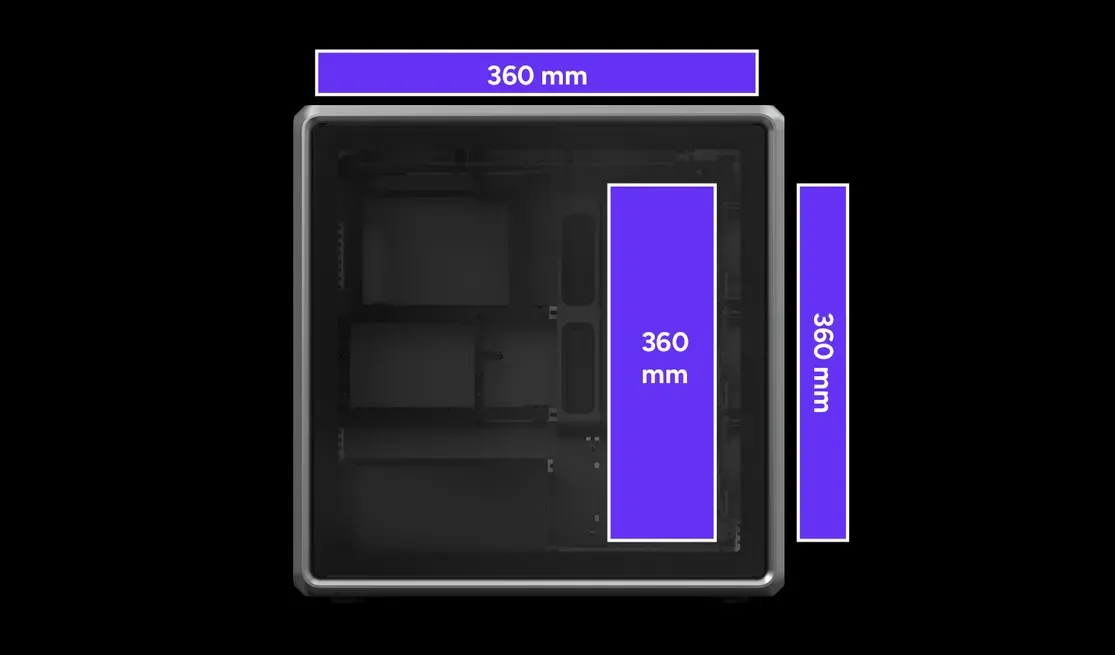

EXTREME COOLING SUPPORT
Multiple radiator placements
Accommodates up to triple 360mm radiators and custom water-cooling solutions, delivering exceptional thermal performance for extreme overclocking and high-performance hardware.
Product Specs
Specifications
Product Number
MF600-KGNN-S00
Colour
Black
Materials - Exterior
Aluminium + SGCC
Materials - Side Panel
Tempered Glass (Left / Right)
Dimensions (L x W x H)
531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)
Volume
73.6 L (Liters Incl. Protrusions)
Motherboard Support
ITX / Micro-ATX / ATX
Expansion Slots
8
5.25" Drive Bays
0
3.5" Drive Bays
5
2.5" Drive Bays
5
Preinstalled Drive Bays - 3.5" Drive Bay (remark Toolfree quantity)
3.5" x 5
Preinstalled Drive Bays - 2.5" Drive Bay (or SSD, remark Toolfree quantity)
2.5" x 5
I/O Panel - Power-LED Colour
Blue
I/O Panel - HDD-LED Colour
Red
I/O Panel - USB Ports
USB 3.2 Gen 1 Type A x 2 / USB 3.2 Gen 1 Type C x 1
I/O Panel - Audio In / Out
3.5 mm Combo x 1
I/O Panel - Reset-switch
With
Fan Support - Front
120 mm x 3 / 140 mm x 3 / 180 mm x 2 / 200 mm x 2
Fan Support - Top
120 mm x 3 / 140 mm x 2 / 180 mm x 2 / 200 mm x 1
Fan Support - Rear
120 mm x 1
Fan Support - Bottom
120 mm x 1 / 140 mm x 1 / 180 mm x 1 / 200 mm x 1
Fan Support - Side mount
120 mm x 3 / 140 mm x 3
Pre-installed Fans - Front
Mobius 140 mm x 3 (non-ARGB) - Available for Black Model Only
Pre-installed Fans - Rear
Mobius 120 mm x 1 (non-ARGB) - Available for Black Model Only
Radiator Support - Front
120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)
Radiator Support - Top
240 / 280 / 360 mm
Radiator Support - Rear
120mm
Radiator Support - Side mount
240 mm / 280 mm / 360 mm / 420 mm
Clearance - CPU Cooler
190 mm
Clearance - PSU
235 mm
Clearance - Graphics Card (installed 3.5"HDD BRK)
485 mm (w/o Front Fan & Radiator)
Cable Routing - Behind Motherboard Tray
43 mm
Dust Filters
Top / Front / Bottom
Power Supply Support
ATX
Accessory
GPU Support Bracket
Warranty
2 years
Series
MasterFrame Series
Size
Mid Tower
