APC 865W 1500VA Line Interactive UPS BR1500GI

APC Back-UPS Pro 1500VA 230V 865W, 5 x IEC C13 (Surge Protection), 2x IEC Jumpers, 5x IEC C13 (battery backup), Cold-start capable, automatic self-tes

SPECIFICATION

Output

• Output power capacity: 865 Watts / 1.5 kVA
• Max Configurable Power (Watts): 865 Watts / 1.5 kVA
• Nominal Output Voltage: 230V
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Load Crest Factor: 3: 1
• Topology: Line Interactive
• Waveform type: Stepped approximation to a sinewave

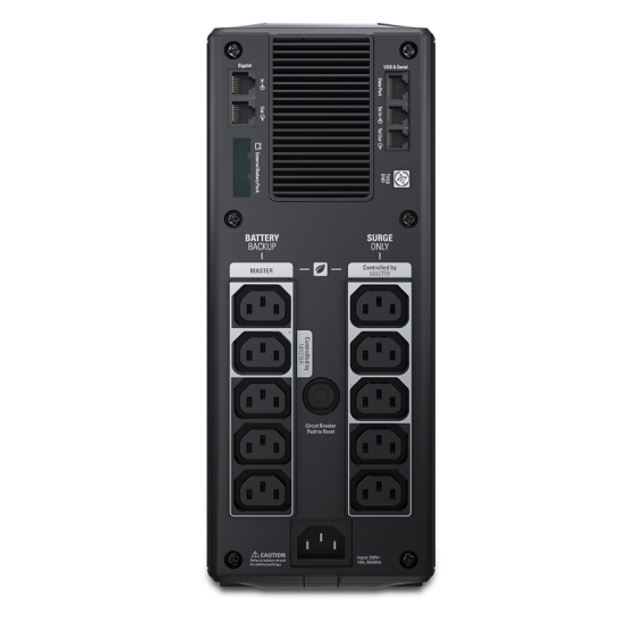

• Output Connections: ◦ (5) IEC 320 C13 (Battery Backup)
◦ (5) IEC 320 C13 (selector_surgetitle)

• Transfer Time: 10ms typical: 12ms maximum

Input

• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 176 - 294 V
• Input voltage adjustable range for mains operation: 156 - 300 V
• Number of Power Cords: 2

Batteries & Runtime

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time:8 hour(s)
• Replacement Battery:APCRBC124
• RBC Quantity:1
• Battery Volt-Amp-Hour Capacity: 187
• Extended Run Options: APC-Power-Saving-Back-UPS-Pro-1500-230V
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management

• Interface Port(s): Optional Simple Signalling RS232 cable, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering
• Surge energy rating: 441 Joules
• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
• Filtering:Full time multi-pole noise filtering:10% of IEEE surge let-thgouh: zero clamping response time: instantaneous
